1. Material Science and Structural Residence
1.1 Crystal Structure and Chemical Security

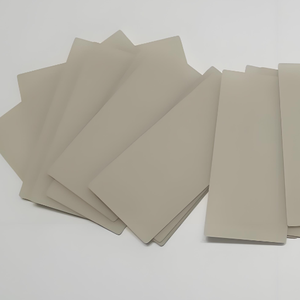

(Aluminum Nitride Ceramic Substrates)
Aluminum nitride (AlN) is a large bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, composed of rotating layers of aluminum and nitrogen atoms adhered through strong covalent interactions.
This robust atomic arrangement enhances AlN with outstanding thermal stability, maintaining structural stability as much as 2200 ° C in inert ambiences and standing up to decay under extreme thermal cycling.
Unlike alumina (Al ₂ O ₃), AlN is chemically inert to thaw steels and many reactive gases, making it ideal for harsh settings such as semiconductor processing chambers and high-temperature furnaces.
Its high resistance to oxidation– creating just a thin safety Al two O six layer at surface area upon direct exposure to air– guarantees long-term reliability without considerable destruction of mass properties.
Additionally, AlN shows excellent electrical insulation with a resistivity surpassing 10 ¹⁴ Ω · centimeters and a dielectric toughness over 30 kV/mm, vital for high-voltage applications.
1.2 Thermal Conductivity and Electronic Features
The most defining attribute of aluminum nitride is its outstanding thermal conductivity, normally varying from 140 to 180 W/(m · K )for commercial-grade substratums– over 5 times more than that of alumina (≈ 30 W/(m · K)).
This performance comes from the low atomic mass of nitrogen and aluminum, combined with strong bonding and very little point defects, which enable efficient phonon transport through the latticework.
Nevertheless, oxygen contaminations are especially detrimental; even trace amounts (above 100 ppm) alternative to nitrogen sites, developing aluminum jobs and scattering phonons, thereby significantly minimizing thermal conductivity.
High-purity AlN powders synthesized by means of carbothermal decrease or direct nitridation are necessary to accomplish optimal warmth dissipation.
In spite of being an electric insulator, AlN’s piezoelectric and pyroelectric residential properties make it important in sensors and acoustic wave devices, while its wide bandgap (~ 6.2 eV) supports procedure in high-power and high-frequency digital systems.
2. Fabrication Procedures and Manufacturing Obstacles

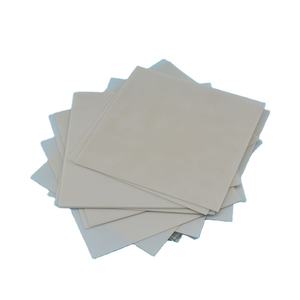

( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Techniques
Producing high-performance AlN substrates begins with the synthesis of ultra-fine, high-purity powder, typically accomplished with reactions such as Al Two O FIVE + 3C + N ₂ → 2AlN + 3CO (carbothermal reduction) or straight nitridation of aluminum steel: 2Al + N TWO → 2AlN.
The resulting powder has to be very carefully milled and doped with sintering help like Y ₂ O SIX, CaO, or uncommon planet oxides to advertise densification at temperatures in between 1700 ° C and 1900 ° C under nitrogen atmosphere.
These ingredients form short-term liquid stages that boost grain border diffusion, allowing full densification (> 99% academic density) while reducing oxygen contamination.
Post-sintering annealing in carbon-rich atmospheres can further lower oxygen material by getting rid of intergranular oxides, thus restoring peak thermal conductivity.
Accomplishing consistent microstructure with controlled grain size is important to stabilize mechanical strength, thermal efficiency, and manufacturability.
2.2 Substratum Forming and Metallization
Once sintered, AlN ceramics are precision-ground and splashed to satisfy tight dimensional tolerances required for digital product packaging, commonly down to micrometer-level monotony.
Through-hole drilling, laser cutting, and surface patterning make it possible for combination right into multilayer bundles and hybrid circuits.
A critical action in substrate manufacture is metallization– the application of conductive layers (usually tungsten, molybdenum, or copper) through procedures such as thick-film printing, thin-film sputtering, or direct bonding of copper (DBC).
For DBC, copper foils are bonded to AlN surfaces at raised temperatures in a regulated environment, developing a strong interface suitable for high-current applications.
Alternate methods like energetic metal brazing (AMB) make use of titanium-containing solders to enhance bond and thermal exhaustion resistance, especially under repeated power cycling.
Proper interfacial engineering makes certain low thermal resistance and high mechanical reliability in operating tools.
3. Efficiency Advantages in Electronic Solution
3.1 Thermal Monitoring in Power Electronic Devices
AlN substratums excel in managing warm produced by high-power semiconductor tools such as IGBTs, MOSFETs, and RF amplifiers used in electrical cars, renewable energy inverters, and telecoms facilities.
Effective warm removal prevents local hotspots, decreases thermal stress, and expands gadget life time by alleviating electromigration and delamination threats.
Contrasted to traditional Al two O five substratums, AlN allows smaller sized plan sizes and higher power densities as a result of its remarkable thermal conductivity, allowing designers to push efficiency borders without compromising integrity.
In LED illumination and laser diodes, where junction temperature level directly influences performance and color stability, AlN substratums dramatically boost luminous result and functional life expectancy.
Its coefficient of thermal expansion (CTE ≈ 4.5 ppm/K) additionally very closely matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), reducing thermo-mechanical stress and anxiety throughout thermal cycling.
3.2 Electric and Mechanical Dependability
Beyond thermal performance, AlN supplies low dielectric loss (tan δ < 0.0005) and stable permittivity (εᵣ ≈ 8.9) across a wide regularity array, making it optimal for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature avoids wetness access, removing corrosion risks in damp atmospheres– a vital advantage over organic substratums.
Mechanically, AlN possesses high flexural toughness (300– 400 MPa) and solidity (HV ≈ 1200), making certain durability throughout handling, assembly, and field procedure.
These qualities jointly add to improved system integrity, lowered failure rates, and reduced overall expense of ownership in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Protection Equipments
AlN ceramic substratums are currently common in sophisticated power modules for commercial motor drives, wind and solar inverters, and onboard chargers in electrical and hybrid vehicles.
In aerospace and protection, they support radar systems, electronic warfare devices, and satellite communications, where efficiency under extreme problems is non-negotiable.
Clinical imaging equipment, including X-ray generators and MRI systems, also gain from AlN’s radiation resistance and signal stability.
As electrification trends accelerate throughout transportation and energy sectors, demand for AlN substrates remains to expand, driven by the demand for small, reliable, and reliable power electronic devices.
4.2 Emerging Assimilation and Lasting Advancement
Future advancements focus on incorporating AlN right into three-dimensional product packaging styles, ingrained passive elements, and heterogeneous integration systems integrating Si, SiC, and GaN devices.
Research into nanostructured AlN films and single-crystal substrates intends to additional increase thermal conductivity towards theoretical limitations (> 300 W/(m · K)) for next-generation quantum and optoelectronic devices.
Efforts to reduce manufacturing expenses through scalable powder synthesis, additive manufacturing of complex ceramic frameworks, and recycling of scrap AlN are getting energy to enhance sustainability.
Furthermore, modeling devices utilizing limited element analysis (FEA) and artificial intelligence are being employed to optimize substrate style for specific thermal and electric loads.
To conclude, light weight aluminum nitride ceramic substratums stand for a keystone innovation in contemporary electronic devices, distinctively bridging the space between electric insulation and outstanding thermal transmission.
Their function in allowing high-efficiency, high-reliability power systems highlights their tactical significance in the continuous advancement of digital and energy innovations.
