1. Composition and Structural Properties of Fused Quartz
1.1 Amorphous Network and Thermal Security

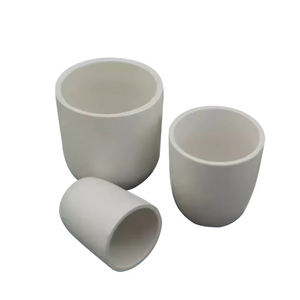

(Quartz Crucibles)
Quartz crucibles are high-temperature containers made from integrated silica, a synthetic type of silicon dioxide (SiO TWO) stemmed from the melting of natural quartz crystals at temperature levels exceeding 1700 ° C.
Unlike crystalline quartz, merged silica possesses an amorphous three-dimensional network of corner-sharing SiO four tetrahedra, which conveys exceptional thermal shock resistance and dimensional security under rapid temperature changes.
This disordered atomic framework stops bosom along crystallographic airplanes, making merged silica much less susceptible to breaking during thermal cycling contrasted to polycrystalline ceramics.
The product displays a reduced coefficient of thermal development (~ 0.5 × 10 ⁻⁶/ K), among the most affordable among engineering products, allowing it to withstand extreme thermal slopes without fracturing– a crucial building in semiconductor and solar cell production.
Fused silica likewise maintains exceptional chemical inertness against most acids, liquified steels, and slags, although it can be gradually engraved by hydrofluoric acid and hot phosphoric acid.
Its high softening factor (~ 1600– 1730 ° C, depending on pureness and OH web content) allows continual operation at raised temperatures required for crystal growth and steel refining procedures.
1.2 Purity Grading and Trace Element Control
The efficiency of quartz crucibles is extremely dependent on chemical pureness, particularly the focus of metallic impurities such as iron, sodium, potassium, aluminum, and titanium.
Also trace amounts (parts per million level) of these impurities can migrate right into liquified silicon throughout crystal growth, breaking down the electrical homes of the resulting semiconductor material.
High-purity grades used in electronic devices manufacturing normally include over 99.95% SiO ₂, with alkali steel oxides restricted to much less than 10 ppm and transition metals below 1 ppm.
Pollutants originate from raw quartz feedstock or handling tools and are minimized through cautious choice of mineral resources and purification strategies like acid leaching and flotation.
In addition, the hydroxyl (OH) content in merged silica influences its thermomechanical behavior; high-OH kinds provide much better UV transmission however reduced thermal security, while low-OH variations are favored for high-temperature applications as a result of reduced bubble development.

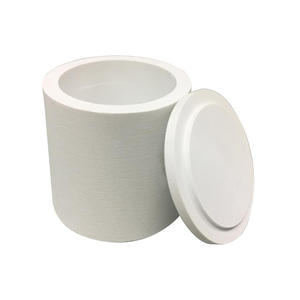

( Quartz Crucibles)
2. Manufacturing Process and Microstructural Design
2.1 Electrofusion and Developing Methods
Quartz crucibles are largely created through electrofusion, a process in which high-purity quartz powder is fed right into a rotating graphite mold and mildew within an electrical arc furnace.
An electric arc produced in between carbon electrodes melts the quartz particles, which solidify layer by layer to form a seamless, dense crucible shape.
This technique generates a fine-grained, uniform microstructure with marginal bubbles and striae, important for consistent warmth circulation and mechanical integrity.
Alternate methods such as plasma fusion and flame blend are made use of for specialized applications requiring ultra-low contamination or specific wall density profiles.
After casting, the crucibles undertake controlled air conditioning (annealing) to alleviate interior stresses and stop spontaneous cracking throughout service.
Surface ending up, consisting of grinding and brightening, makes sure dimensional accuracy and reduces nucleation websites for unwanted condensation throughout usage.
2.2 Crystalline Layer Design and Opacity Control
A specifying attribute of contemporary quartz crucibles, particularly those utilized in directional solidification of multicrystalline silicon, is the crafted internal layer framework.
Throughout production, the internal surface area is typically dealt with to advertise the formation of a slim, controlled layer of cristobalite– a high-temperature polymorph of SiO ₂– upon very first home heating.
This cristobalite layer serves as a diffusion barrier, lowering straight interaction in between molten silicon and the underlying fused silica, consequently decreasing oxygen and metallic contamination.
Furthermore, the presence of this crystalline stage boosts opacity, boosting infrared radiation absorption and advertising more consistent temperature circulation within the melt.
Crucible designers thoroughly stabilize the density and connection of this layer to stay clear of spalling or breaking due to quantity adjustments during phase shifts.
3. Practical Efficiency in High-Temperature Applications
3.1 Function in Silicon Crystal Growth Processes
Quartz crucibles are vital in the production of monocrystalline and multicrystalline silicon, serving as the key container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ procedure, a seed crystal is dipped into molten silicon held in a quartz crucible and slowly drew up while turning, permitting single-crystal ingots to create.
Although the crucible does not straight call the expanding crystal, interactions in between molten silicon and SiO ₂ walls cause oxygen dissolution right into the melt, which can influence provider lifetime and mechanical stamina in finished wafers.
In DS procedures for photovoltaic-grade silicon, large quartz crucibles enable the regulated air conditioning of hundreds of kgs of molten silicon into block-shaped ingots.
Below, coatings such as silicon nitride (Si four N FOUR) are applied to the internal surface area to avoid adhesion and help with very easy release of the strengthened silicon block after cooling down.
3.2 Deterioration Systems and Service Life Limitations
In spite of their effectiveness, quartz crucibles weaken throughout duplicated high-temperature cycles as a result of several interrelated mechanisms.
Viscous flow or deformation happens at prolonged direct exposure above 1400 ° C, bring about wall surface thinning and loss of geometric stability.
Re-crystallization of merged silica into cristobalite generates internal stresses due to quantity expansion, potentially causing fractures or spallation that contaminate the thaw.
Chemical disintegration develops from reduction reactions between molten silicon and SiO ₂: SiO ₂ + Si → 2SiO(g), creating unpredictable silicon monoxide that escapes and damages the crucible wall surface.
Bubble formation, driven by trapped gases or OH groups, even more endangers architectural stamina and thermal conductivity.
These destruction paths limit the number of reuse cycles and necessitate accurate procedure control to maximize crucible lifespan and product yield.
4. Arising Advancements and Technological Adaptations
4.1 Coatings and Composite Modifications
To enhance performance and resilience, progressed quartz crucibles integrate useful coverings and composite frameworks.
Silicon-based anti-sticking layers and doped silica layers enhance release features and decrease oxygen outgassing during melting.
Some producers integrate zirconia (ZrO ₂) bits right into the crucible wall to enhance mechanical stamina and resistance to devitrification.
Research is ongoing right into completely clear or gradient-structured crucibles developed to enhance convected heat transfer in next-generation solar furnace layouts.
4.2 Sustainability and Recycling Obstacles
With raising need from the semiconductor and solar industries, sustainable use of quartz crucibles has come to be a priority.
Used crucibles polluted with silicon residue are hard to recycle as a result of cross-contamination risks, resulting in substantial waste generation.
Efforts focus on establishing reusable crucible liners, boosted cleansing protocols, and closed-loop recycling systems to recover high-purity silica for additional applications.
As gadget effectiveness require ever-higher material pureness, the duty of quartz crucibles will continue to evolve through innovation in products science and procedure design.
In recap, quartz crucibles represent an essential interface in between basic materials and high-performance digital items.
Their special combination of purity, thermal strength, and architectural style allows the construction of silicon-based innovations that power contemporary computing and renewable energy systems.
