1. Structural Features and Synthesis of Spherical Silica
1.1 Morphological Definition and Crystallinity

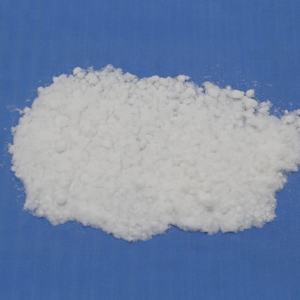

(Spherical Silica)
Spherical silica refers to silicon dioxide (SiO ₂) particles engineered with a very uniform, near-perfect round form, differentiating them from standard irregular or angular silica powders originated from natural sources.
These fragments can be amorphous or crystalline, though the amorphous type controls commercial applications because of its premium chemical security, lower sintering temperature level, and absence of phase shifts that can generate microcracking.
The round morphology is not normally common; it must be artificially attained with controlled processes that regulate nucleation, development, and surface area energy reduction.
Unlike crushed quartz or fused silica, which show rugged edges and wide dimension distributions, spherical silica attributes smooth surfaces, high packing density, and isotropic habits under mechanical stress and anxiety, making it ideal for accuracy applications.
The fragment diameter usually ranges from tens of nanometers to a number of micrometers, with limited control over size circulation allowing foreseeable performance in composite systems.
1.2 Managed Synthesis Pathways
The key approach for generating round silica is the Stöber procedure, a sol-gel method created in the 1960s that entails the hydrolysis and condensation of silicon alkoxides– most frequently tetraethyl orthosilicate (TEOS)– in an alcoholic option with ammonia as a catalyst.
By adjusting specifications such as reactant focus, water-to-alkoxide proportion, pH, temperature, and reaction time, scientists can precisely tune bit dimension, monodispersity, and surface chemistry.
This approach yields very uniform, non-agglomerated spheres with excellent batch-to-batch reproducibility, crucial for state-of-the-art production.
Alternative methods consist of fire spheroidization, where uneven silica particles are thawed and improved into balls via high-temperature plasma or fire treatment, and emulsion-based methods that permit encapsulation or core-shell structuring.
For large-scale industrial production, salt silicate-based rainfall courses are additionally employed, providing economical scalability while preserving acceptable sphericity and pureness.
Surface functionalization throughout or after synthesis– such as grafting with silanes– can present natural teams (e.g., amino, epoxy, or vinyl) to improve compatibility with polymer matrices or enable bioconjugation.
( Spherical Silica)
2. Practical Characteristics and Efficiency Advantages
2.1 Flowability, Loading Density, and Rheological Habits
Among one of the most considerable advantages of spherical silica is its exceptional flowability contrasted to angular counterparts, a residential property important in powder handling, injection molding, and additive production.
The lack of sharp edges lowers interparticle friction, allowing thick, homogeneous packing with marginal void room, which improves the mechanical integrity and thermal conductivity of last compounds.
In electronic packaging, high packing density directly converts to reduce resin content in encapsulants, improving thermal security and lowering coefficient of thermal development (CTE).
Moreover, spherical fragments impart beneficial rheological buildings to suspensions and pastes, minimizing thickness and stopping shear enlarging, which makes certain smooth giving and uniform coating in semiconductor construction.
This controlled circulation habits is vital in applications such as flip-chip underfill, where exact material placement and void-free filling are needed.
2.2 Mechanical and Thermal Security
Round silica displays superb mechanical stamina and elastic modulus, contributing to the support of polymer matrices without causing anxiety concentration at sharp edges.
When integrated into epoxy materials or silicones, it improves firmness, put on resistance, and dimensional stability under thermal biking.
Its low thermal development coefficient (~ 0.5 × 10 ⁻⁶/ K) very closely matches that of silicon wafers and printed motherboard, reducing thermal inequality anxieties in microelectronic tools.
In addition, round silica maintains structural honesty at elevated temperatures (up to ~ 1000 ° C in inert ambiences), making it ideal for high-reliability applications in aerospace and vehicle electronic devices.
The mix of thermal stability and electric insulation additionally enhances its utility in power components and LED product packaging.
3. Applications in Electronic Devices and Semiconductor Sector
3.1 Role in Electronic Product Packaging and Encapsulation
Round silica is a cornerstone material in the semiconductor industry, mainly used as a filler in epoxy molding compounds (EMCs) for chip encapsulation.
Changing typical irregular fillers with round ones has reinvented product packaging technology by enabling greater filler loading (> 80 wt%), improved mold circulation, and decreased cord move throughout transfer molding.
This innovation supports the miniaturization of incorporated circuits and the development of advanced bundles such as system-in-package (SiP) and fan-out wafer-level packaging (FOWLP).
The smooth surface of round particles also lessens abrasion of great gold or copper bonding cables, improving gadget integrity and return.
Additionally, their isotropic nature makes sure uniform stress and anxiety distribution, reducing the danger of delamination and fracturing throughout thermal biking.
3.2 Use in Polishing and Planarization Processes
In chemical mechanical planarization (CMP), round silica nanoparticles work as abrasive agents in slurries created to polish silicon wafers, optical lenses, and magnetic storage media.
Their consistent size and shape guarantee constant material removal prices and minimal surface area flaws such as scrapes or pits.
Surface-modified round silica can be tailored for particular pH atmospheres and reactivity, boosting selectivity in between various materials on a wafer surface.
This precision makes it possible for the fabrication of multilayered semiconductor frameworks with nanometer-scale monotony, a prerequisite for innovative lithography and device integration.
4. Emerging and Cross-Disciplinary Applications
4.1 Biomedical and Diagnostic Utilizes
Beyond electronics, round silica nanoparticles are increasingly used in biomedicine due to their biocompatibility, convenience of functionalization, and tunable porosity.
They act as medicine distribution providers, where therapeutic representatives are packed into mesoporous frameworks and launched in feedback to stimulations such as pH or enzymes.
In diagnostics, fluorescently labeled silica balls serve as steady, non-toxic probes for imaging and biosensing, surpassing quantum dots in specific organic atmospheres.
Their surface area can be conjugated with antibodies, peptides, or DNA for targeted discovery of microorganisms or cancer biomarkers.
4.2 Additive Production and Composite Products
In 3D printing, particularly in binder jetting and stereolithography, spherical silica powders enhance powder bed thickness and layer harmony, causing greater resolution and mechanical strength in printed porcelains.
As a strengthening stage in metal matrix and polymer matrix composites, it improves rigidity, thermal management, and put on resistance without endangering processability.
Research is likewise checking out hybrid fragments– core-shell structures with silica coverings over magnetic or plasmonic cores– for multifunctional products in sensing and power storage space.
In conclusion, round silica exemplifies just how morphological control at the mini- and nanoscale can change a common material right into a high-performance enabler across varied technologies.
From safeguarding microchips to advancing clinical diagnostics, its one-of-a-kind mix of physical, chemical, and rheological residential or commercial properties continues to drive advancement in science and design.
