1. Basic Make-up and Structural Qualities of Quartz Ceramics
1.1 Chemical Pureness and Crystalline-to-Amorphous Transition

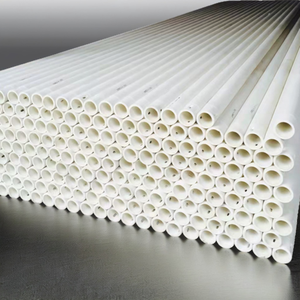

(Quartz Ceramics)
Quartz ceramics, likewise known as merged silica or integrated quartz, are a class of high-performance inorganic products derived from silicon dioxide (SiO TWO) in its ultra-pure, non-crystalline (amorphous) type.
Unlike conventional porcelains that depend on polycrystalline frameworks, quartz ceramics are distinguished by their total absence of grain boundaries due to their lustrous, isotropic network of SiO ₄ tetrahedra adjoined in a three-dimensional random network.
This amorphous structure is attained through high-temperature melting of all-natural quartz crystals or artificial silica forerunners, adhered to by quick cooling to avoid condensation.
The resulting material consists of commonly over 99.9% SiO ₂, with trace impurities such as alkali metals (Na ⁺, K ⁺), aluminum, and iron maintained parts-per-million levels to preserve optical clearness, electrical resistivity, and thermal performance.
The lack of long-range order gets rid of anisotropic habits, making quartz porcelains dimensionally stable and mechanically consistent in all directions– an essential benefit in accuracy applications.
1.2 Thermal Habits and Resistance to Thermal Shock
Among one of the most defining features of quartz ceramics is their exceptionally low coefficient of thermal expansion (CTE), generally around 0.55 × 10 ⁻⁶/ K between 20 ° C and 300 ° C.
This near-zero development emerges from the adaptable Si– O– Si bond angles in the amorphous network, which can change under thermal tension without damaging, allowing the product to endure fast temperature level adjustments that would certainly fracture conventional porcelains or steels.
Quartz ceramics can endure thermal shocks surpassing 1000 ° C, such as straight immersion in water after heating to heated temperature levels, without splitting or spalling.
This home makes them important in atmospheres entailing repeated home heating and cooling cycles, such as semiconductor handling heating systems, aerospace parts, and high-intensity illumination systems.
Furthermore, quartz porcelains preserve architectural stability as much as temperature levels of around 1100 ° C in continual service, with temporary exposure resistance approaching 1600 ° C in inert environments.

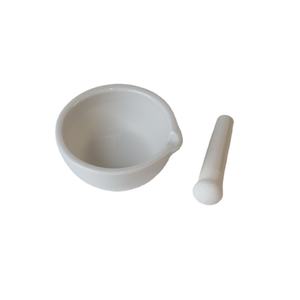

( Quartz Ceramics)
Beyond thermal shock resistance, they show high softening temperatures (~ 1600 ° C )and exceptional resistance to devitrification– though extended direct exposure above 1200 ° C can launch surface area condensation right into cristobalite, which might compromise mechanical stamina due to quantity adjustments during stage shifts.
2. Optical, Electrical, and Chemical Properties of Fused Silica Equipment
2.1 Broadband Openness and Photonic Applications
Quartz porcelains are renowned for their exceptional optical transmission across a wide spectral range, extending from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.
This transparency is enabled by the lack of contaminations and the homogeneity of the amorphous network, which minimizes light scattering and absorption.
High-purity artificial integrated silica, generated using fire hydrolysis of silicon chlorides, achieves even higher UV transmission and is made use of in important applications such as excimer laser optics, photolithography lenses, and space-based telescopes.
The material’s high laser damage limit– withstanding malfunction under extreme pulsed laser irradiation– makes it ideal for high-energy laser systems used in blend study and industrial machining.
Moreover, its reduced autofluorescence and radiation resistance ensure dependability in clinical instrumentation, including spectrometers, UV curing systems, and nuclear surveillance gadgets.
2.2 Dielectric Efficiency and Chemical Inertness
From an electric viewpoint, quartz ceramics are exceptional insulators with volume resistivity exceeding 10 ¹⁸ Ω · cm at area temperature and a dielectric constant of approximately 3.8 at 1 MHz.
Their reduced dielectric loss tangent (tan δ < 0.0001) makes certain very little power dissipation in high-frequency and high-voltage applications, making them suitable for microwave home windows, radar domes, and protecting substrates in digital assemblies.
These residential or commercial properties continue to be steady over a broad temperature level variety, unlike several polymers or traditional porcelains that break down electrically under thermal stress and anxiety.
Chemically, quartz ceramics show exceptional inertness to many acids, consisting of hydrochloric, nitric, and sulfuric acids, as a result of the security of the Si– O bond.
However, they are at risk to attack by hydrofluoric acid (HF) and strong alkalis such as warm sodium hydroxide, which break the Si– O– Si network.
This selective sensitivity is exploited in microfabrication processes where regulated etching of integrated silica is needed.
In hostile commercial environments– such as chemical handling, semiconductor damp benches, and high-purity liquid handling– quartz porcelains serve as linings, view glasses, and reactor components where contamination need to be minimized.
3. Production Processes and Geometric Engineering of Quartz Porcelain Components
3.1 Thawing and Forming Methods
The manufacturing of quartz porcelains includes a number of specialized melting approaches, each customized to details purity and application requirements.
Electric arc melting makes use of high-purity quartz sand melted in a water-cooled copper crucible under vacuum cleaner or inert gas, creating large boules or tubes with exceptional thermal and mechanical residential or commercial properties.
Flame fusion, or combustion synthesis, includes shedding silicon tetrachloride (SiCl four) in a hydrogen-oxygen flame, depositing great silica fragments that sinter into a clear preform– this method generates the greatest optical top quality and is made use of for artificial merged silica.
Plasma melting supplies a different path, giving ultra-high temperature levels and contamination-free handling for niche aerospace and defense applications.
Once thawed, quartz ceramics can be formed through precision spreading, centrifugal forming (for tubes), or CNC machining of pre-sintered blanks.
Because of their brittleness, machining needs diamond devices and cautious control to avoid microcracking.
3.2 Precision Manufacture and Surface Completing
Quartz ceramic parts are often produced into complicated geometries such as crucibles, tubes, poles, windows, and customized insulators for semiconductor, photovoltaic, and laser industries.
Dimensional precision is crucial, especially in semiconductor manufacturing where quartz susceptors and bell jars must keep precise placement and thermal uniformity.
Surface completing plays an important function in efficiency; sleek surface areas minimize light spreading in optical elements and minimize nucleation sites for devitrification in high-temperature applications.
Engraving with buffered HF services can produce controlled surface area structures or eliminate harmed layers after machining.
For ultra-high vacuum cleaner (UHV) systems, quartz porcelains are cleaned up and baked to remove surface-adsorbed gases, ensuring minimal outgassing and compatibility with delicate processes like molecular beam epitaxy (MBE).
4. Industrial and Scientific Applications of Quartz Ceramics
4.1 Duty in Semiconductor and Photovoltaic Manufacturing
Quartz porcelains are fundamental materials in the fabrication of integrated circuits and solar cells, where they act as furnace tubes, wafer watercrafts (susceptors), and diffusion chambers.
Their capability to withstand high temperatures in oxidizing, lowering, or inert environments– incorporated with low metallic contamination– makes certain process purity and yield.
Throughout chemical vapor deposition (CVD) or thermal oxidation, quartz parts keep dimensional stability and stand up to bending, protecting against wafer damage and misalignment.
In photovoltaic production, quartz crucibles are made use of to grow monocrystalline silicon ingots using the Czochralski procedure, where their purity straight influences the electrical top quality of the final solar cells.
4.2 Usage in Lights, Aerospace, and Analytical Instrumentation
In high-intensity discharge (HID) lamps and UV sterilization systems, quartz ceramic envelopes have plasma arcs at temperature levels going beyond 1000 ° C while sending UV and visible light efficiently.
Their thermal shock resistance avoids failing during fast lamp ignition and shutdown cycles.
In aerospace, quartz ceramics are utilized in radar windows, sensor real estates, and thermal protection systems due to their low dielectric constant, high strength-to-density proportion, and stability under aerothermal loading.
In analytical chemistry and life scientific researches, integrated silica blood vessels are important in gas chromatography (GC) and capillary electrophoresis (CE), where surface inertness protects against example adsorption and makes sure exact separation.
Furthermore, quartz crystal microbalances (QCMs), which rely upon the piezoelectric homes of crystalline quartz (unique from integrated silica), utilize quartz ceramics as safety real estates and insulating supports in real-time mass sensing applications.
Finally, quartz ceramics stand for a special intersection of severe thermal durability, optical transparency, and chemical purity.
Their amorphous framework and high SiO ₂ web content make it possible for performance in environments where conventional products fail, from the heart of semiconductor fabs to the edge of area.
As modern technology advancements towards greater temperature levels, greater accuracy, and cleaner processes, quartz ceramics will certainly remain to serve as a crucial enabler of innovation throughout scientific research and industry.
