1. Product Basics and Crystal Chemistry
1.1 Make-up and Polymorphic Framework
(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic compound made up of silicon and carbon atoms in a 1:1 stoichiometric ratio, renowned for its remarkable solidity, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal structures differing in piling sequences– amongst which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are one of the most technically appropriate.
The solid directional covalent bonds (Si– C bond energy ~ 318 kJ/mol) cause a high melting point (~ 2700 ° C), reduced thermal expansion (~ 4.0 × 10 ⁻⁶/ K), and outstanding resistance to thermal shock.
Unlike oxide porcelains such as alumina, SiC does not have a native lustrous stage, adding to its stability in oxidizing and destructive ambiences approximately 1600 ° C.
Its vast bandgap (2.3– 3.3 eV, depending on polytype) likewise endows it with semiconductor homes, allowing dual usage in structural and digital applications.
1.2 Sintering Difficulties and Densification Approaches
Pure SiC is incredibly tough to densify due to its covalent bonding and reduced self-diffusion coefficients, demanding the use of sintering aids or advanced handling techniques.
Reaction-bonded SiC (RB-SiC) is generated by infiltrating porous carbon preforms with molten silicon, forming SiC sitting; this approach yields near-net-shape elements with residual silicon (5– 20%).
Solid-state sintered SiC (SSiC) uses boron and carbon additives to advertise densification at ~ 2000– 2200 ° C under inert atmosphere, accomplishing > 99% theoretical density and premium mechanical homes.
Liquid-phase sintered SiC (LPS-SiC) employs oxide additives such as Al Two O TWO– Y TWO O ₃, creating a transient liquid that improves diffusion however might minimize high-temperature stamina as a result of grain-boundary phases.
Warm pushing and spark plasma sintering (SPS) supply rapid, pressure-assisted densification with great microstructures, suitable for high-performance elements needing very little grain development.
2. Mechanical and Thermal Efficiency Characteristics
2.1 Toughness, Firmness, and Use Resistance
Silicon carbide porcelains exhibit Vickers firmness values of 25– 30 GPa, 2nd only to diamond and cubic boron nitride amongst design products.
Their flexural toughness usually varies from 300 to 600 MPa, with fracture durability (K_IC) of 3– 5 MPa · m ¹/ TWO– moderate for porcelains yet improved with microstructural engineering such as whisker or fiber support.
The combination of high solidity and elastic modulus (~ 410 Grade point average) makes SiC extremely resistant to rough and erosive wear, exceeding tungsten carbide and hardened steel in slurry and particle-laden environments.
( Silicon Carbide Ceramics)
In commercial applications such as pump seals, nozzles, and grinding media, SiC components demonstrate service lives a number of times much longer than conventional choices.
Its reduced density (~ 3.1 g/cm TWO) additional adds to use resistance by minimizing inertial forces in high-speed rotating parts.
2.2 Thermal Conductivity and Security
Among SiC’s most distinguishing features is its high thermal conductivity– varying from 80 to 120 W/(m · K )for polycrystalline types, and as much as 490 W/(m · K) for single-crystal 4H-SiC– surpassing most metals except copper and light weight aluminum.
This property allows effective heat dissipation in high-power digital substrates, brake discs, and heat exchanger components.
Coupled with low thermal development, SiC displays impressive thermal shock resistance, evaluated by the R-parameter (σ(1– ν)k/ αE), where high worths indicate durability to quick temperature modifications.

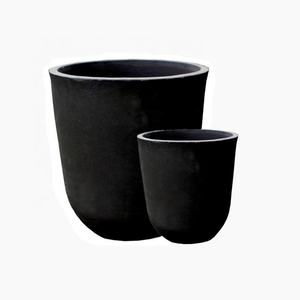

For instance, SiC crucibles can be heated from room temperature to 1400 ° C in minutes without splitting, an accomplishment unattainable for alumina or zirconia in comparable problems.
Additionally, SiC maintains stamina up to 1400 ° C in inert atmospheres, making it excellent for furnace fixtures, kiln furniture, and aerospace parts exposed to severe thermal cycles.
3. Chemical Inertness and Deterioration Resistance
3.1 Behavior in Oxidizing and Reducing Environments
At temperatures listed below 800 ° C, SiC is extremely steady in both oxidizing and reducing environments.
Over 800 ° C in air, a protective silica (SiO ₂) layer types on the surface area through oxidation (SiC + 3/2 O TWO → SiO TWO + CARBON MONOXIDE), which passivates the product and reduces more destruction.
However, in water vapor-rich or high-velocity gas streams over 1200 ° C, this silica layer can volatilize as Si(OH)₄, bring about sped up economic downturn– an important factor to consider in turbine and burning applications.
In decreasing atmospheres or inert gases, SiC continues to be steady approximately its disintegration temperature (~ 2700 ° C), without any phase modifications or stamina loss.
This security makes it ideal for liquified steel handling, such as aluminum or zinc crucibles, where it stands up to wetting and chemical assault far better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is essentially inert to all acids except hydrofluoric acid (HF) and solid oxidizing acid blends (e.g., HF– HNO FOUR).
It reveals outstanding resistance to alkalis up to 800 ° C, though prolonged exposure to molten NaOH or KOH can create surface area etching via formation of soluble silicates.
In molten salt settings– such as those in focused solar energy (CSP) or nuclear reactors– SiC demonstrates exceptional rust resistance contrasted to nickel-based superalloys.
This chemical effectiveness underpins its usage in chemical procedure devices, including shutoffs, linings, and warm exchanger tubes handling aggressive media like chlorine, sulfuric acid, or seawater.
4. Industrial Applications and Arising Frontiers
4.1 Established Uses in Energy, Defense, and Manufacturing
Silicon carbide ceramics are indispensable to various high-value commercial systems.
In the power industry, they function as wear-resistant liners in coal gasifiers, parts in nuclear gas cladding (SiC/SiC composites), and substrates for high-temperature solid oxide gas cells (SOFCs).
Protection applications include ballistic armor plates, where SiC’s high hardness-to-density ratio supplies exceptional defense versus high-velocity projectiles compared to alumina or boron carbide at reduced cost.
In production, SiC is utilized for precision bearings, semiconductor wafer taking care of components, and unpleasant blasting nozzles due to its dimensional security and pureness.
Its use in electrical car (EV) inverters as a semiconductor substrate is rapidly growing, driven by effectiveness gains from wide-bandgap electronic devices.
4.2 Next-Generation Advancements and Sustainability
Continuous research study focuses on SiC fiber-reinforced SiC matrix composites (SiC/SiC), which display pseudo-ductile actions, boosted toughness, and maintained strength above 1200 ° C– ideal for jet engines and hypersonic car leading edges.
Additive production of SiC via binder jetting or stereolithography is advancing, allowing complicated geometries formerly unattainable through traditional forming techniques.
From a sustainability perspective, SiC’s longevity decreases replacement frequency and lifecycle emissions in commercial systems.
Recycling of SiC scrap from wafer slicing or grinding is being developed with thermal and chemical healing processes to reclaim high-purity SiC powder.
As sectors push towards greater effectiveness, electrification, and extreme-environment procedure, silicon carbide-based ceramics will remain at the leading edge of innovative products engineering, connecting the space in between architectural durability and practical adaptability.
