1. Basic Make-up and Architectural Style of Quartz Ceramics
1.1 Crystalline vs. Fused Silica: Defining the Material Class

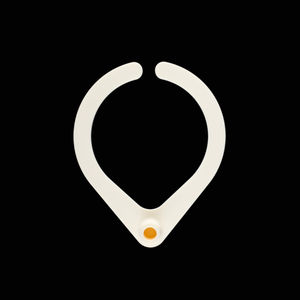

(Transparent Ceramics)
Quartz ceramics, additionally known as integrated quartz or integrated silica ceramics, are innovative inorganic materials derived from high-purity crystalline quartz (SiO TWO) that undergo controlled melting and debt consolidation to develop a dense, non-crystalline (amorphous) or partly crystalline ceramic framework.
Unlike standard ceramics such as alumina or zirconia, which are polycrystalline and composed of multiple phases, quartz porcelains are predominantly made up of silicon dioxide in a network of tetrahedrally coordinated SiO ₄ devices, offering remarkable chemical purity– commonly surpassing 99.9% SiO ₂.
The distinction between fused quartz and quartz ceramics depends on processing: while integrated quartz is usually a totally amorphous glass created by rapid cooling of liquified silica, quartz porcelains may include controlled condensation (devitrification) or sintering of great quartz powders to accomplish a fine-grained polycrystalline or glass-ceramic microstructure with enhanced mechanical robustness.
This hybrid method incorporates the thermal and chemical security of fused silica with improved fracture sturdiness and dimensional security under mechanical tons.
1.2 Thermal and Chemical Security Devices
The phenomenal efficiency of quartz ceramics in severe settings stems from the solid covalent Si– O bonds that create a three-dimensional network with high bond energy (~ 452 kJ/mol), conferring amazing resistance to thermal deterioration and chemical strike.
These products show an extremely low coefficient of thermal expansion– about 0.55 × 10 ⁻⁶/ K over the range 20– 300 ° C– making them highly immune to thermal shock, a critical quality in applications involving quick temperature cycling.
They keep structural honesty from cryogenic temperatures up to 1200 ° C in air, and also higher in inert environments, before softening starts around 1600 ° C.
Quartz ceramics are inert to many acids, consisting of hydrochloric, nitric, and sulfuric acids, as a result of the stability of the SiO ₂ network, although they are vulnerable to assault by hydrofluoric acid and strong antacid at elevated temperature levels.
This chemical strength, incorporated with high electrical resistivity and ultraviolet (UV) transparency, makes them ideal for usage in semiconductor processing, high-temperature furnaces, and optical systems subjected to rough conditions.
2. Manufacturing Processes and Microstructural Control

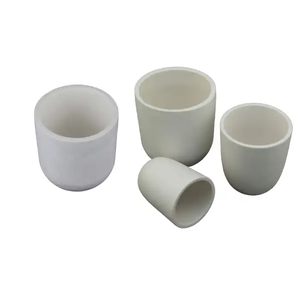

( Transparent Ceramics)
2.1 Melting, Sintering, and Devitrification Pathways
The production of quartz ceramics involves sophisticated thermal handling techniques created to maintain pureness while attaining wanted thickness and microstructure.
One usual method is electrical arc melting of high-purity quartz sand, complied with by controlled air conditioning to develop fused quartz ingots, which can after that be machined right into elements.
For sintered quartz ceramics, submicron quartz powders are compacted using isostatic pushing and sintered at temperatures between 1100 ° C and 1400 ° C, usually with very little ingredients to promote densification without causing excessive grain development or stage change.
An essential challenge in handling is staying clear of devitrification– the spontaneous formation of metastable silica glass right into cristobalite or tridymite stages– which can endanger thermal shock resistance due to volume adjustments throughout stage changes.
Suppliers utilize exact temperature level control, quick air conditioning cycles, and dopants such as boron or titanium to suppress undesirable condensation and preserve a steady amorphous or fine-grained microstructure.
2.2 Additive Production and Near-Net-Shape Manufacture
Current advances in ceramic additive manufacturing (AM), especially stereolithography (SLA) and binder jetting, have actually made it possible for the manufacture of complicated quartz ceramic elements with high geometric precision.
In these procedures, silica nanoparticles are suspended in a photosensitive material or precisely bound layer-by-layer, adhered to by debinding and high-temperature sintering to attain full densification.
This strategy reduces material waste and enables the creation of complex geometries– such as fluidic channels, optical cavities, or heat exchanger aspects– that are difficult or impossible to accomplish with conventional machining.
Post-processing strategies, consisting of chemical vapor infiltration (CVI) or sol-gel finishing, are occasionally put on seal surface area porosity and enhance mechanical and ecological sturdiness.
These advancements are increasing the application extent of quartz ceramics right into micro-electromechanical systems (MEMS), lab-on-a-chip tools, and customized high-temperature fixtures.
3. Practical Qualities and Efficiency in Extreme Environments
3.1 Optical Openness and Dielectric Behavior
Quartz ceramics exhibit unique optical homes, including high transmission in the ultraviolet, visible, and near-infrared range (from ~ 180 nm to 2500 nm), making them important in UV lithography, laser systems, and space-based optics.
This transparency arises from the absence of digital bandgap transitions in the UV-visible variety and minimal spreading because of homogeneity and low porosity.
On top of that, they possess excellent dielectric residential or commercial properties, with a reduced dielectric constant (~ 3.8 at 1 MHz) and minimal dielectric loss, allowing their usage as protecting elements in high-frequency and high-power electronic systems, such as radar waveguides and plasma activators.
Their capacity to preserve electric insulation at raised temperature levels better improves dependability popular electrical atmospheres.
3.2 Mechanical Actions and Long-Term Toughness
In spite of their high brittleness– a typical characteristic among ceramics– quartz ceramics demonstrate good mechanical toughness (flexural stamina approximately 100 MPa) and superb creep resistance at high temperatures.
Their hardness (around 5.5– 6.5 on the Mohs scale) provides resistance to surface abrasion, although treatment must be taken during taking care of to stay clear of breaking or fracture proliferation from surface area imperfections.
Environmental toughness is another essential benefit: quartz ceramics do not outgas significantly in vacuum cleaner, stand up to radiation damage, and keep dimensional security over prolonged direct exposure to thermal cycling and chemical atmospheres.
This makes them preferred products in semiconductor fabrication chambers, aerospace sensors, and nuclear instrumentation where contamination and failing have to be lessened.
4. Industrial, Scientific, and Emerging Technological Applications
4.1 Semiconductor and Photovoltaic Manufacturing Systems
In the semiconductor market, quartz ceramics are common in wafer handling equipment, including furnace tubes, bell containers, susceptors, and shower heads made use of in chemical vapor deposition (CVD) and plasma etching.
Their purity avoids metal contamination of silicon wafers, while their thermal security makes certain uniform temperature level distribution during high-temperature handling actions.
In photovoltaic production, quartz components are made use of in diffusion furnaces and annealing systems for solar cell manufacturing, where constant thermal profiles and chemical inertness are essential for high return and performance.
The demand for larger wafers and higher throughput has driven the advancement of ultra-large quartz ceramic frameworks with boosted homogeneity and minimized defect density.
4.2 Aerospace, Defense, and Quantum Technology Assimilation
Past industrial handling, quartz porcelains are used in aerospace applications such as rocket guidance home windows, infrared domes, and re-entry lorry parts as a result of their capability to endure severe thermal slopes and wind resistant anxiety.
In defense systems, their transparency to radar and microwave frequencies makes them ideal for radomes and sensing unit housings.
Extra recently, quartz ceramics have actually found functions in quantum innovations, where ultra-low thermal development and high vacuum compatibility are required for precision optical cavities, atomic traps, and superconducting qubit units.
Their ability to reduce thermal drift makes certain lengthy coherence times and high measurement accuracy in quantum computer and noticing platforms.
In recap, quartz ceramics represent a course of high-performance materials that link the space between conventional porcelains and specialized glasses.
Their unrivaled combination of thermal stability, chemical inertness, optical openness, and electric insulation enables innovations operating at the restrictions of temperature level, purity, and accuracy.
As making methods develop and demand grows for materials efficient in holding up against progressively severe conditions, quartz porcelains will certainly continue to play a foundational duty beforehand semiconductor, energy, aerospace, and quantum systems.
