1. Product Basics and Morphological Advantages
1.1 Crystal Structure and Chemical Make-up

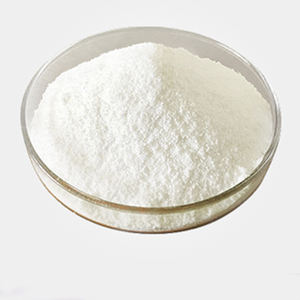

(Spherical alumina)
Round alumina, or round light weight aluminum oxide (Al two O FIVE), is an artificially created ceramic product identified by a well-defined globular morphology and a crystalline structure mostly in the alpha (α) stage.
Alpha-alumina, one of the most thermodynamically steady polymorph, features a hexagonal close-packed arrangement of oxygen ions with light weight aluminum ions inhabiting two-thirds of the octahedral interstices, resulting in high latticework power and outstanding chemical inertness.
This phase exhibits superior thermal security, preserving honesty approximately 1800 ° C, and stands up to reaction with acids, alkalis, and molten metals under most industrial conditions.
Unlike irregular or angular alumina powders originated from bauxite calcination, spherical alumina is crafted via high-temperature procedures such as plasma spheroidization or fire synthesis to attain consistent satiation and smooth surface area texture.
The change from angular forerunner bits– typically calcined bauxite or gibbsite– to thick, isotropic balls eliminates sharp edges and internal porosity, improving packaging performance and mechanical resilience.
High-purity qualities (≥ 99.5% Al Two O SIX) are essential for electronic and semiconductor applications where ionic contamination should be minimized.
1.2 Fragment Geometry and Packaging Behavior
The specifying feature of round alumina is its near-perfect sphericity, typically quantified by a sphericity index > 0.9, which substantially affects its flowability and packing thickness in composite systems.
Unlike angular bits that interlock and produce voids, spherical particles roll previous each other with marginal rubbing, making it possible for high solids filling throughout formula of thermal user interface products (TIMs), encapsulants, and potting substances.
This geometric uniformity enables optimum theoretical packaging thickness going beyond 70 vol%, far surpassing the 50– 60 vol% common of uneven fillers.
Greater filler packing straight equates to enhanced thermal conductivity in polymer matrices, as the continual ceramic network offers reliable phonon transportation paths.
Additionally, the smooth surface minimizes wear on processing tools and reduces thickness rise throughout mixing, improving processability and dispersion stability.
The isotropic nature of rounds likewise stops orientation-dependent anisotropy in thermal and mechanical homes, ensuring constant performance in all instructions.
2. Synthesis Methods and Quality Control
2.1 High-Temperature Spheroidization Strategies
The production of spherical alumina primarily relies upon thermal techniques that thaw angular alumina fragments and permit surface area tension to reshape them right into balls.
( Spherical alumina)
Plasma spheroidization is one of the most widely utilized industrial technique, where alumina powder is infused into a high-temperature plasma fire (as much as 10,000 K), triggering rapid melting and surface tension-driven densification into ideal spheres.
The molten droplets solidify rapidly throughout trip, developing thick, non-porous fragments with consistent dimension circulation when combined with specific classification.
Different techniques include flame spheroidization utilizing oxy-fuel torches and microwave-assisted heating, though these typically provide reduced throughput or much less control over particle dimension.
The beginning product’s purity and particle dimension distribution are critical; submicron or micron-scale forerunners generate alike sized rounds after processing.
Post-synthesis, the product undergoes rigorous sieving, electrostatic separation, and laser diffraction analysis to ensure limited bit dimension distribution (PSD), usually varying from 1 to 50 µm depending upon application.
2.2 Surface Area Alteration and Useful Customizing
To boost compatibility with organic matrices such as silicones, epoxies, and polyurethanes, round alumina is typically surface-treated with combining agents.
Silane combining agents– such as amino, epoxy, or plastic functional silanes– type covalent bonds with hydroxyl teams on the alumina surface area while providing natural functionality that engages with the polymer matrix.
This treatment enhances interfacial attachment, minimizes filler-matrix thermal resistance, and prevents jumble, leading to more homogeneous composites with remarkable mechanical and thermal efficiency.
Surface coatings can likewise be crafted to pass on hydrophobicity, enhance diffusion in nonpolar resins, or make it possible for stimuli-responsive habits in clever thermal products.
Quality control consists of measurements of wager area, faucet density, thermal conductivity (normally 25– 35 W/(m · K )for dense α-alumina), and impurity profiling by means of ICP-MS to exclude Fe, Na, and K at ppm levels.
Batch-to-batch consistency is necessary for high-reliability applications in electronics and aerospace.
3. Thermal and Mechanical Efficiency in Composites
3.1 Thermal Conductivity and Interface Design
Round alumina is largely utilized as a high-performance filler to improve the thermal conductivity of polymer-based products utilized in electronic product packaging, LED lighting, and power modules.
While pure epoxy or silicone has a thermal conductivity of ~ 0.2 W/(m · K), loading with 60– 70 vol% round alumina can raise this to 2– 5 W/(m · K), adequate for reliable warm dissipation in compact tools.
The high innate thermal conductivity of α-alumina, combined with marginal phonon scattering at smooth particle-particle and particle-matrix interfaces, enables reliable heat transfer with percolation networks.
Interfacial thermal resistance (Kapitza resistance) stays a limiting variable, but surface area functionalization and optimized diffusion techniques aid decrease this obstacle.
In thermal interface materials (TIMs), spherical alumina reduces get in touch with resistance between heat-generating components (e.g., CPUs, IGBTs) and heat sinks, avoiding getting too hot and prolonging gadget life expectancy.
Its electric insulation (resistivity > 10 ¹² Ω · cm) ensures safety in high-voltage applications, identifying it from conductive fillers like steel or graphite.
3.2 Mechanical Security and Integrity
Past thermal performance, spherical alumina enhances the mechanical robustness of composites by boosting solidity, modulus, and dimensional security.
The round shape distributes anxiety consistently, minimizing split initiation and propagation under thermal biking or mechanical tons.
This is particularly vital in underfill products and encapsulants for flip-chip and 3D-packaged devices, where coefficient of thermal expansion (CTE) inequality can induce delamination.
By readjusting filler loading and bit dimension distribution (e.g., bimodal blends), the CTE of the compound can be tuned to match that of silicon or published circuit card, minimizing thermo-mechanical tension.
Additionally, the chemical inertness of alumina avoids deterioration in humid or destructive settings, making certain long-lasting integrity in auto, industrial, and outdoor electronic devices.
4. Applications and Technological Advancement
4.1 Electronic Devices and Electric Lorry Equipments
Spherical alumina is a vital enabler in the thermal management of high-power electronic devices, consisting of insulated gateway bipolar transistors (IGBTs), power products, and battery management systems in electric vehicles (EVs).
In EV battery loads, it is included right into potting compounds and phase change products to avoid thermal runaway by evenly distributing warm throughout cells.
LED suppliers utilize it in encapsulants and additional optics to preserve lumen result and color consistency by reducing joint temperature level.
In 5G framework and information facilities, where warm change thickness are increasing, spherical alumina-filled TIMs make certain steady procedure of high-frequency chips and laser diodes.
Its function is increasing right into advanced packaging innovations such as fan-out wafer-level product packaging (FOWLP) and embedded die systems.
4.2 Emerging Frontiers and Lasting Advancement
Future developments focus on hybrid filler systems integrating round alumina with boron nitride, light weight aluminum nitride, or graphene to attain collaborating thermal performance while maintaining electrical insulation.
Nano-spherical alumina (sub-100 nm) is being discovered for clear ceramics, UV layers, and biomedical applications, though difficulties in diffusion and expense stay.
Additive manufacturing of thermally conductive polymer composites utilizing spherical alumina enables complicated, topology-optimized heat dissipation structures.
Sustainability initiatives consist of energy-efficient spheroidization processes, recycling of off-spec material, and life-cycle analysis to minimize the carbon footprint of high-performance thermal materials.
In summary, round alumina stands for an important engineered material at the junction of porcelains, compounds, and thermal scientific research.
Its special combination of morphology, purity, and performance makes it essential in the recurring miniaturization and power rise of contemporary electronic and energy systems.
