1. Material Foundations and Collaborating Design
1.1 Innate Qualities of Component Phases

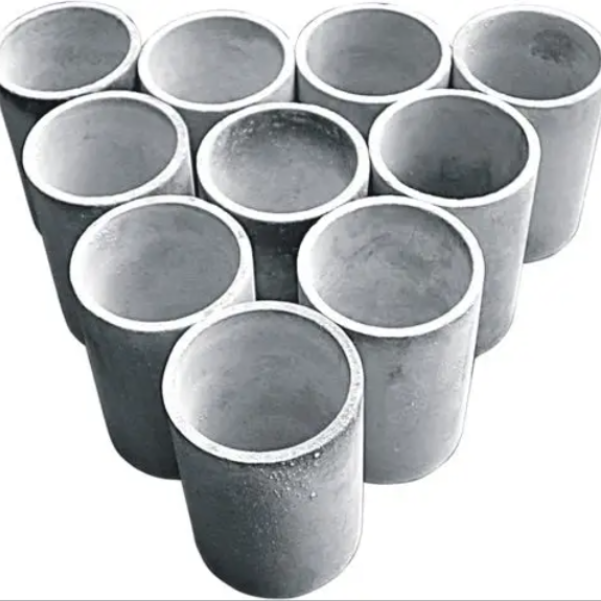

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si six N FOUR) and silicon carbide (SiC) are both covalently bonded, non-oxide ceramics renowned for their remarkable performance in high-temperature, harsh, and mechanically requiring settings.
Silicon nitride displays impressive fracture durability, thermal shock resistance, and creep security as a result of its special microstructure composed of extended β-Si five N four grains that make it possible for crack deflection and linking devices.
It keeps stamina up to 1400 ° C and has a fairly reduced thermal growth coefficient (~ 3.2 × 10 ⁻⁶/ K), minimizing thermal stress and anxieties during fast temperature level modifications.
In contrast, silicon carbide provides remarkable solidity, thermal conductivity (up to 120– 150 W/(m · K )for single crystals), oxidation resistance, and chemical inertness, making it perfect for abrasive and radiative heat dissipation applications.
Its vast bandgap (~ 3.3 eV for 4H-SiC) also gives superb electrical insulation and radiation resistance, beneficial in nuclear and semiconductor contexts.
When integrated into a composite, these materials show corresponding habits: Si five N ₄ improves strength and damages resistance, while SiC improves thermal monitoring and put on resistance.
The resulting hybrid ceramic achieves a balance unattainable by either stage alone, creating a high-performance architectural material tailored for severe solution conditions.
1.2 Compound Architecture and Microstructural Design
The design of Si five N FOUR– SiC compounds entails accurate control over stage circulation, grain morphology, and interfacial bonding to take full advantage of synergistic results.
Generally, SiC is introduced as great particulate reinforcement (varying from submicron to 1 µm) within a Si ₃ N ₄ matrix, although functionally rated or split architectures are additionally checked out for specialized applications.
During sintering– generally via gas-pressure sintering (GENERAL PRACTITIONER) or hot pushing– SiC particles affect the nucleation and growth kinetics of β-Si five N ₄ grains, often promoting finer and even more consistently oriented microstructures.
This improvement improves mechanical homogeneity and lowers problem dimension, contributing to improved stamina and integrity.
Interfacial compatibility in between both stages is critical; because both are covalent porcelains with similar crystallographic symmetry and thermal growth behavior, they create systematic or semi-coherent limits that withstand debonding under lots.
Ingredients such as yttria (Y TWO O ₃) and alumina (Al ₂ O FOUR) are utilized as sintering help to advertise liquid-phase densification of Si six N four without endangering the stability of SiC.
Nevertheless, extreme additional phases can weaken high-temperature performance, so composition and processing must be enhanced to lessen lustrous grain border films.
2. Processing Strategies and Densification Obstacles
( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Prep Work and Shaping Approaches
Top Quality Si Six N ₄– SiC composites start with uniform blending of ultrafine, high-purity powders utilizing damp ball milling, attrition milling, or ultrasonic diffusion in natural or liquid media.
Attaining uniform diffusion is crucial to avoid heap of SiC, which can act as tension concentrators and decrease crack durability.
Binders and dispersants are included in maintain suspensions for shaping strategies such as slip spreading, tape casting, or injection molding, depending upon the preferred component geometry.
Eco-friendly bodies are after that thoroughly dried and debound to remove organics before sintering, a procedure needing regulated home heating prices to prevent fracturing or deforming.
For near-net-shape manufacturing, additive strategies like binder jetting or stereolithography are arising, enabling complicated geometries formerly unachievable with standard ceramic processing.
These approaches require customized feedstocks with enhanced rheology and green stamina, typically entailing polymer-derived porcelains or photosensitive materials packed with composite powders.
2.2 Sintering Devices and Stage Security
Densification of Si Six N ₄– SiC composites is challenging as a result of the strong covalent bonding and minimal self-diffusion of nitrogen and carbon at functional temperatures.
Liquid-phase sintering utilizing rare-earth or alkaline earth oxides (e.g., Y ₂ O ₃, MgO) reduces the eutectic temperature and improves mass transportation through a short-term silicate melt.
Under gas stress (commonly 1– 10 MPa N TWO), this thaw facilitates rearrangement, solution-precipitation, and final densification while reducing disintegration of Si six N FOUR.
The visibility of SiC influences viscosity and wettability of the fluid phase, possibly modifying grain growth anisotropy and last structure.
Post-sintering warm treatments might be related to crystallize recurring amorphous stages at grain limits, boosting high-temperature mechanical properties and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are regularly made use of to confirm phase purity, lack of undesirable additional stages (e.g., Si two N ₂ O), and uniform microstructure.
3. Mechanical and Thermal Efficiency Under Load
3.1 Stamina, Sturdiness, and Exhaustion Resistance
Si Three N FOUR– SiC composites demonstrate exceptional mechanical efficiency compared to monolithic ceramics, with flexural staminas exceeding 800 MPa and fracture strength worths reaching 7– 9 MPa · m ¹/ ².
The reinforcing result of SiC particles hinders misplacement activity and fracture proliferation, while the extended Si six N four grains remain to provide strengthening through pull-out and connecting mechanisms.
This dual-toughening method causes a material very immune to influence, thermal biking, and mechanical exhaustion– critical for rotating components and structural aspects in aerospace and energy systems.
Creep resistance stays superb approximately 1300 ° C, attributed to the stability of the covalent network and lessened grain border moving when amorphous phases are minimized.
Firmness worths usually vary from 16 to 19 Grade point average, offering outstanding wear and erosion resistance in abrasive environments such as sand-laden flows or moving get in touches with.
3.2 Thermal Administration and Environmental Durability
The enhancement of SiC substantially elevates the thermal conductivity of the composite, frequently increasing that of pure Si three N ₄ (which ranges from 15– 30 W/(m · K) )to 40– 60 W/(m · K) depending upon SiC web content and microstructure.
This boosted warm transfer capability enables a lot more reliable thermal management in parts revealed to extreme localized home heating, such as combustion liners or plasma-facing components.
The composite retains dimensional stability under high thermal gradients, resisting spallation and cracking due to matched thermal growth and high thermal shock specification (R-value).
Oxidation resistance is an additional vital advantage; SiC forms a protective silica (SiO ₂) layer upon exposure to oxygen at raised temperature levels, which additionally compresses and seals surface issues.
This passive layer protects both SiC and Si Five N FOUR (which additionally oxidizes to SiO ₂ and N ₂), ensuring long-term toughness in air, heavy steam, or combustion environments.
4. Applications and Future Technological Trajectories
4.1 Aerospace, Energy, and Industrial Solution
Si Six N FOUR– SiC compounds are progressively deployed in next-generation gas generators, where they allow greater operating temperature levels, boosted gas effectiveness, and reduced cooling demands.
Elements such as turbine blades, combustor linings, and nozzle guide vanes benefit from the product’s capability to endure thermal biking and mechanical loading without significant deterioration.
In atomic power plants, particularly high-temperature gas-cooled reactors (HTGRs), these composites serve as gas cladding or structural assistances as a result of their neutron irradiation tolerance and fission item retention capability.
In commercial setups, they are used in molten metal handling, kiln furniture, and wear-resistant nozzles and bearings, where conventional metals would stop working too soon.
Their light-weight nature (thickness ~ 3.2 g/cm ³) also makes them attractive for aerospace propulsion and hypersonic lorry components subject to aerothermal heating.
4.2 Advanced Manufacturing and Multifunctional Assimilation
Emerging study focuses on developing functionally rated Si three N FOUR– SiC structures, where structure varies spatially to enhance thermal, mechanical, or electro-magnetic residential or commercial properties across a single part.
Crossbreed systems including CMC (ceramic matrix composite) styles with fiber reinforcement (e.g., SiC_f/ SiC– Si Three N FOUR) push the boundaries of damage resistance and strain-to-failure.
Additive production of these composites allows topology-optimized warm exchangers, microreactors, and regenerative air conditioning networks with inner latticework structures unattainable via machining.
Additionally, their intrinsic dielectric properties and thermal stability make them candidates for radar-transparent radomes and antenna home windows in high-speed platforms.
As demands expand for materials that perform reliably under extreme thermomechanical tons, Si ₃ N ₄– SiC composites represent a crucial development in ceramic design, merging effectiveness with capability in a solitary, lasting platform.
To conclude, silicon nitride– silicon carbide composite ceramics exemplify the power of materials-by-design, leveraging the toughness of 2 innovative porcelains to create a hybrid system efficient in growing in one of the most extreme operational environments.
Their proceeded growth will certainly play a central function ahead of time clean energy, aerospace, and industrial technologies in the 21st century.
