1. Material Principles and Architectural Characteristic
1.1 Crystal Chemistry and Polymorphism

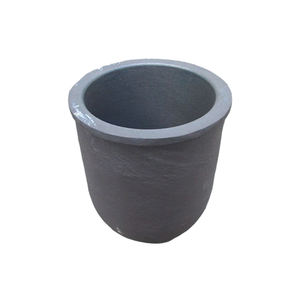

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic made up of silicon and carbon atoms arranged in a tetrahedral lattice, developing among the most thermally and chemically robust materials recognized.
It exists in over 250 polytypic kinds, with the 3C (cubic), 4H, and 6H hexagonal frameworks being most pertinent for high-temperature applications.
The solid Si– C bonds, with bond energy exceeding 300 kJ/mol, confer phenomenal hardness, thermal conductivity, and resistance to thermal shock and chemical strike.
In crucible applications, sintered or reaction-bonded SiC is preferred as a result of its ability to maintain architectural honesty under severe thermal slopes and destructive liquified settings.
Unlike oxide porcelains, SiC does not undertake disruptive phase changes up to its sublimation factor (~ 2700 ° C), making it optimal for continual operation above 1600 ° C.
1.2 Thermal and Mechanical Efficiency
A specifying feature of SiC crucibles is their high thermal conductivity– ranging from 80 to 120 W/(m · K)– which advertises uniform heat circulation and decreases thermal tension throughout rapid home heating or cooling.
This building contrasts dramatically with low-conductivity ceramics like alumina (≈ 30 W/(m · K)), which are susceptible to splitting under thermal shock.
SiC additionally displays exceptional mechanical toughness at raised temperatures, maintaining over 80% of its room-temperature flexural strength (approximately 400 MPa) also at 1400 ° C.
Its reduced coefficient of thermal development (~ 4.0 × 10 ⁻⁶/ K) additionally enhances resistance to thermal shock, an important factor in duplicated biking in between ambient and operational temperature levels.
In addition, SiC demonstrates superior wear and abrasion resistance, making sure lengthy service life in atmospheres including mechanical handling or unstable thaw flow.
2. Manufacturing Techniques and Microstructural Control
( Silicon Carbide Crucibles)
2.1 Sintering Methods and Densification Techniques
Commercial SiC crucibles are primarily made via pressureless sintering, response bonding, or warm pushing, each offering unique benefits in price, purity, and efficiency.
Pressureless sintering involves condensing fine SiC powder with sintering aids such as boron and carbon, complied with by high-temperature therapy (2000– 2200 ° C )in inert ambience to attain near-theoretical density.
This technique returns high-purity, high-strength crucibles suitable for semiconductor and advanced alloy processing.
Reaction-bonded SiC (RBSC) is produced by infiltrating a permeable carbon preform with liquified silicon, which reacts to create β-SiC in situ, leading to a composite of SiC and recurring silicon.
While slightly reduced in thermal conductivity as a result of metal silicon additions, RBSC provides superb dimensional stability and reduced manufacturing cost, making it popular for massive industrial usage.
Hot-pressed SiC, though a lot more pricey, offers the greatest density and pureness, scheduled for ultra-demanding applications such as single-crystal development.
2.2 Surface Top Quality and Geometric Precision
Post-sintering machining, including grinding and washing, ensures accurate dimensional tolerances and smooth internal surface areas that minimize nucleation sites and reduce contamination danger.
Surface roughness is very carefully managed to prevent melt attachment and facilitate simple release of solidified products.
Crucible geometry– such as wall surface thickness, taper angle, and lower curvature– is maximized to stabilize thermal mass, architectural toughness, and compatibility with heater burner.
Personalized styles fit certain melt quantities, heating profiles, and material reactivity, ensuring optimum performance throughout diverse commercial procedures.
Advanced quality control, consisting of X-ray diffraction, scanning electron microscopy, and ultrasonic screening, verifies microstructural homogeneity and absence of issues like pores or cracks.
3. Chemical Resistance and Communication with Melts
3.1 Inertness in Aggressive Atmospheres
SiC crucibles display outstanding resistance to chemical strike by molten metals, slags, and non-oxidizing salts, surpassing conventional graphite and oxide porcelains.
They are steady in contact with liquified aluminum, copper, silver, and their alloys, withstanding wetting and dissolution as a result of reduced interfacial power and development of protective surface oxides.
In silicon and germanium processing for photovoltaics and semiconductors, SiC crucibles stop metal contamination that could weaken digital properties.
Nevertheless, under extremely oxidizing conditions or in the visibility of alkaline fluxes, SiC can oxidize to form silica (SiO ₂), which might respond even more to create low-melting-point silicates.
Therefore, SiC is ideal matched for neutral or lowering ambiences, where its stability is taken full advantage of.
3.2 Limitations and Compatibility Considerations
Despite its robustness, SiC is not universally inert; it reacts with specific molten materials, particularly iron-group metals (Fe, Ni, Co) at heats with carburization and dissolution procedures.
In molten steel processing, SiC crucibles break down quickly and are therefore stayed clear of.
Similarly, antacids and alkaline planet steels (e.g., Li, Na, Ca) can reduce SiC, releasing carbon and forming silicides, limiting their use in battery product synthesis or responsive steel spreading.
For molten glass and porcelains, SiC is usually suitable yet may introduce trace silicon right into very sensitive optical or digital glasses.
Recognizing these material-specific interactions is important for selecting the appropriate crucible kind and guaranteeing procedure purity and crucible long life.
4. Industrial Applications and Technological Advancement
4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors
SiC crucibles are indispensable in the production of multicrystalline and monocrystalline silicon ingots for solar cells, where they stand up to prolonged exposure to molten silicon at ~ 1420 ° C.
Their thermal stability ensures consistent formation and minimizes dislocation thickness, directly affecting photovoltaic efficiency.
In factories, SiC crucibles are utilized for melting non-ferrous metals such as aluminum and brass, offering longer life span and minimized dross development compared to clay-graphite alternatives.
They are likewise employed in high-temperature research laboratories for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of advanced porcelains and intermetallic compounds.
4.2 Future Fads and Advanced Material Assimilation
Emerging applications include using SiC crucibles in next-generation nuclear products screening and molten salt activators, where their resistance to radiation and molten fluorides is being assessed.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y TWO O SIX) are being related to SiC surface areas to better enhance chemical inertness and prevent silicon diffusion in ultra-high-purity processes.
Additive production of SiC parts making use of binder jetting or stereolithography is under development, encouraging complex geometries and rapid prototyping for specialized crucible layouts.
As demand grows for energy-efficient, durable, and contamination-free high-temperature processing, silicon carbide crucibles will certainly stay a keystone technology in sophisticated materials making.
To conclude, silicon carbide crucibles stand for an essential allowing component in high-temperature commercial and clinical procedures.
Their exceptional combination of thermal security, mechanical strength, and chemical resistance makes them the material of choice for applications where efficiency and reliability are extremely important.
