Bearings are typically called the “joints of market.” Getting the choice right directly affects your equipment’s reliability, life span, and upkeep prices. Numerous bearing failures don’t originate from poor quality– they come from wrong choices. Things like tons computation mistakes, neglecting speed limitations, or selecting the incorrect lubrication approach. These small mistakes can cause devices to damage down early in its service life. This guide strolls you via the whole choice procedure, giving engineers and purchase specialists a clear course from assessing working conditions to confirming the right bearing design.
Part One: What You Required to Know Prior To Starting
Before you open up any kind of bearing catalog, ask yourself one question: What exactly does this maker need the birthing to do? The solution hinges on five crucial areas:
1. Tons Attributes
Tons is the number one factor in birthing option. You need to identify three points:
Direction: Is it radial load (perpendicular to the shaft), axial tons (parallel to the shaft), or a mix of both?
Size: Is it light, moderate, or heavy? Any kind of impact loads?
Nature: Is the load consistent or changing? Exactly how frequently do impact loads occur and exactly how strong are they?
Take a belt conveyor for example. The bearings at the drive end handle radial lots from belt tension, the weight of the belt and rollers, plus the shaft assembly. When calculating, you need to take into consideration different operating problems– startup, normal operating, braking– and utilize the worst-case scenario for your layout.
2. Rate Conditions
(bearings for steel mill)
Rate is one more vital element impacting bearing life. According to fatigue life concept, bearing life has an inverted relationship with speed. For variable rate problems, you require to compute the equivalent rate. Take a rotary kiln support roller– its speed could range from 0.5 to 2.5 r/min. You ‘d require to weight the running time at each rate to obtain an equivalent worth.
One point to look out for: knowing just the optimum rate can ruin your lubrication method. The lube you select based on top speed could not form a correct oil film at lower speeds. Also, if your device has long still periods, you must mention that– or else neighboring tools resonances might create incorrect brinelling damages.
3. Required Service Life
Bearing service life is typically shared as L10h (the variety of hours that 90% of a bearing group will certainly reach prior to fatigue spalling appears). An usual mistake is going with an extremely long life– as soon as L10h goes beyond 100,000 hours, the bearing dimension obtains also big. It becomes tougher to lubricate, torque rises, and it comes to be extra sensitive to minimal tons. In the long run, it may fail for reasons aside from tiredness.
4. Area Restrictions
You ought to understand your readily available space limits from the start– shaft diameter array, housing birthed dimension, axial length limitations. When you know the matching shaft diameter and available room, you can rapidly limit your alternatives.
5. Running Precision Demands
Most applications do just great with standard precision bearings. But also for high-speed or high-precision devices like equipment tool spindles, you’ll need P5, P4, and even higher grades. Simply bear in mind that opting for higher accuracy without a genuine need will certainly drive up costs substantially. Match the quality to your actual requirements.
Part Two: Matching Bearing Types to Functioning Conditions
As soon as you have those parameters clear, the following action is to match the appropriate bearing type based upon load direction, size, speed, and misalignment tolerance.
1. Tons Instructions: Radial, Axial, or Incorporated?

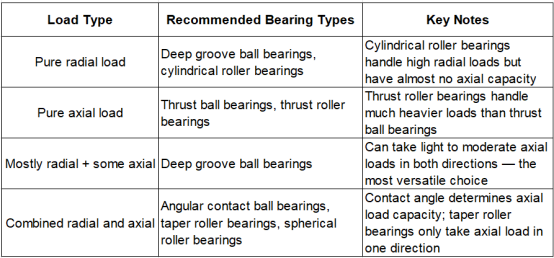

This is one of the most fundamental filter. It can point you to a few candidates right away:
When the axial-to-radial load ratio (Fa/Fr) changes, your choice reasoning modifications too. At reduced proportions, go with deep groove ball bearings. At modest ratios, make use of small-contact-angle angular contact bearings or taper roller bearings. At high proportions, you’ll require large-contact-angle bearings, or consider combining a thrust bearing with a radial bearing.
( Radial)
2. Load Dimension: Ball Bearings or Roller Bearings?
This is a timeless option:
Light or modest lots: Choose ball bearings (deep groove or angular call). The point contact in between balls and raceways gives lower rubbing, making them ideal for medium to broadband.
Hefty or influence tons: You have to make use of roller bearings (round, spherical, or taper). Line call in between rollers and raceways offers much greater lots ability and far better effect resistance.
3. Rate: Sphere Bearings for Broadband, Roller Bearings for Low
Normally speaking, sphere bearings have higher rate limitations than roller bearings. For high-speed applications (above 1000 r/min), placed round bearings at the top of your listing. When you need the highest feasible speed with pure radial tons, open deep groove round bearings are your best bet. For combined lots at broadband, angular get in touch with ball bearings are the means to go.
Round roller bearings, taper roller bearings, and needle bearings have reasonably lower rate restrictions. They’re generally matched for low-to-medium rate, heavy-load problems.
4. Imbalance Resistance: Do You Required Self-Aligning?
This one often gets forgotten however it’s incredibly essential. You need to consider self-aligning bearings when:
Bearing real estate bores don’t align well
The shaft isn’t rigid enough and flexes throughout operation
The bearing period is long and thermal expansion triggers angular imbalance
You’re utilizing different split housings (like cushion block bearings)
Round roller bearings and spherical ball bearings have scooped outer ring raceways. This permits a particular quantity of angular imbalance in between the internal and external rings without dangerous side anxiety. They can compensate for both dynamic deflection and static setup mistakes.
On the other hand, cylindrical roller bearings, taper roller bearings, and needle bearings have extremely limited self-aligning capacity. Also a little angular imbalance can trigger tension focus at the roller ends, bring about high side stress that significantly reduce bearing life. Deep groove round bearings do have some self-aligning ability, but the allowable angle is small– going beyond it will certainly lower life also.
5. Axial Growth Settlement: Fixed End or Drifting End?
Long shafts increase and contract with temperature adjustments during operation. That means you need to set up your bearing arrangement with one set end and one drifting end.
NU and N series cylindrical roller bearings have no flanges on the inner ring (or on one side). This lets the shaft step easily in the axial instructions relative to the housing– making them excellent as floating-end bearings. NJ and NUP collection can offer axial positioning in one or both instructions, so they function well as fixed-end bearings. This configuration is really usual in transmissions and electrical motors.
Component 3: BMB Product at a Glance

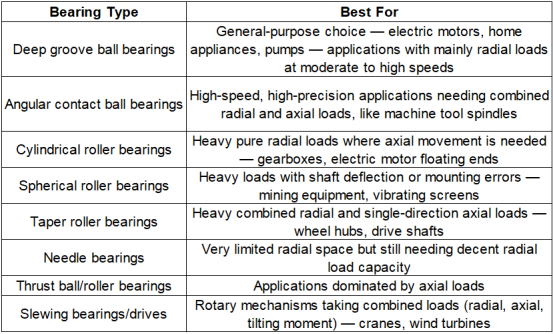

BMB offers a full series of industrial bearings, covering all the significant kinds we’ve reviewed. This quick reference table attaches the selection principles above directly to certain product categories:
Part Four: Diving Deeper– Precision, Clearance, Lubrication, and Seals
( Axial)
1. Precision Grades
Criterion precision (P0) helps the huge majority of basic equipment. For accuracy equipment like maker tool pins or aerospace parts, you’ll require P5 or higher. Tighter precision indicates tighter dimensional tolerances and far better running precision– but additionally greater costs.
2. Inner Clearance and Preload
Bearings need to keep correct interior clearance after installation. Excessive clearance leads to resonance and noise. Insufficient, and thermal growth can create the bearing to confiscate. In special cases like maker tool spindles, preload (using adverse clearance) is used to enhance system rigidity and rotational accuracy.
3. Lubricant Choice
Lubrication is a make-or-break element for bearing life. Grease works for the majority of moderate-speed and temperature level applications– it’s simple to secure and can run maintenance-free for long periods. Oil (oil bath, oil mist, jet lubrication) is much better for high-speed or high-temperature conditions, as it dissipates warmth more effectively. When picking a lube, inspect the speed element (ndm value). Don’t just choose based on optimum speed– the oil you choose may not develop an appropriate film at reduced speeds.
4. Securing Program
Pick the seal kind based upon your environment: call seals keep dirt out well however add some friction; non-contact seals work for high speeds but use less protection versus contamination; open bearings depend on exterior sealing systems.
Part 5: Life Computation– From Theory to Method
( or Combined Basic Filter Table)
At the end of the day, you require to confirm whether your chosen bearing will actually fulfill the expected service life. This is where fundamental rating life estimation is available in.
The standard ranking life L10 formula (ISO 281 requirement):
For round bearings: L10 = (C/P) THREE × (10 SIX/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 SIX/ 60n) hours
Where:
C: standard vibrant load score (kN)– discovered in the item magazine
P: equivalent vibrant tons (kN)– takes both radial and axial tons into account
The equivalent vibrant load P is calculated as: P = X · Fr + Y · Fa
Fr is the radial tons, Fa is the axial load
X and Y are coefficients that rely on bearing kind and the Fa/Fr proportion– inspect the magazine for these worths
For more requiring problems, you can use change aspects: Ln = a1 × a2 × a3 × L10
a1 is the reliability aspect (a1 = 1 for 90% reliability, about 0.21 for 99%)
a2 is the product aspect (high-quality bearing steel can reach 1.5 to 2)
a3 is the operating problems element (great lubrication and cleanliness can give 2 to 3)
With this estimation, designers can confirm that the picked bearing meets the necessary service life. It likewise helps contrast several choices and make data-driven choices.
This guide has actually strolled you through the total selection course– from analyzing working conditions, to matching the appropriate bearing kind, to validating life span. Comprehending and using this methodology will certainly help you make precise, efficient, and cost-effective bearing choices throughout a large range of commercial applications.
