1. Fundamentals of Foam Generation and the Function in Lightweight Concrete Equipment
1.1 Principles of Air Entrainment and Cellular Framework Formation

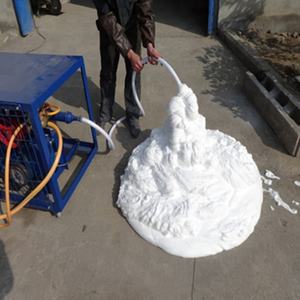

(Lightweight Concrete Foam Generators)
Light-weight concrete, a class of building and construction materials characterized by decreased thickness and boosted thermal insulation, counts basically on the controlled intro of air or gas voids within a cementitious matrix– a procedure referred to as lathering.
The creation of these evenly dispersed, steady air cells is attained through using a specialized tool called a foam generator, which creates penalty, microscale bubbles that are consequently mixed right into the concrete slurry.
These bubbles, typically varying from 50 to 500 micrometers in size, end up being completely entrained upon cement hydration, resulting in a mobile concrete framework with significantly reduced unit weight– usually in between 300 kg/m three and 1,800 kg/m FOUR– compared to standard concrete (~ 2,400 kg/m TWO).
The foam generator is not simply a complementary device but a crucial engineering part that determines the quality, consistency, and efficiency of the last lightweight concrete item.
The procedure begins with a fluid foaming agent, typically a protein-based or synthetic surfactant remedy, which is introduced into the generator where it is mechanically or pneumatically spread right into a dense foam with high shear or compressed air shot.
The security and bubble dimension circulation of the generated foam directly affect essential material residential or commercial properties such as compressive stamina, thermal conductivity, and workability.
1.2 Classification and Functional Mechanisms of Foam Generators
Foam generators are extensively categorized into 3 main types based on their functional concepts: low-pressure (or wet-film), high-pressure (or dynamic), and rotating (or centrifugal) systems.
Low-pressure generators make use of a permeable tool– such as a fine mesh, textile, or ceramic plate– whereby pressed air is required, creating bubbles as the lathering option flows over the surface.
This technique creates relatively large, much less consistent bubbles and is usually used for lower-grade applications where specific control is less vital.
High-pressure systems, on the other hand, utilize a nozzle-based style where a high-velocity stream of pressed air shears the foaming liquid into a fine, uniform foam with slim bubble dimension circulation.
These systems supply remarkable control over foam density and security, making them ideal for structural-grade lightweight concrete and precast applications.
( Lightweight Concrete Foam Generators)
Rotating foam generators utilize a spinning disk or drum that flings the frothing option right into a stream of air, producing bubbles with mechanical diffusion.
While less exact than high-pressure systems, rotary generators are valued for their effectiveness, ease of upkeep, and continual result, appropriate for large-scale on-site putting operations.
The selection of foam generator kind depends on project-specific demands, consisting of desired concrete density, production quantity, and efficiency requirements.
2. Material Science Behind Foam Security and Concrete Performance
2.1 Foaming Brokers and Interfacial Chemistry
The performance of a foam generator is fundamentally connected to the chemical structure and physical habits of the frothing agent.
Foaming representatives are surfactants that reduce the surface area stress of water, allowing the formation of stable air-liquid user interfaces.
Protein-based agents, stemmed from hydrolyzed keratin or albumin, produce long lasting, flexible foam movies with outstanding stability and are often liked in structural applications.
Artificial representatives, such as alkyl sulfonates or ethoxylated alcohols, offer faster foam generation and reduced expense however may create much less steady bubbles under long term mixing or damaging ecological problems.
The molecular structure of the surfactant establishes the thickness and mechanical toughness of the lamellae (thin fluid films) bordering each bubble, which should stand up to coalescence and drainage throughout mixing and treating.
Additives such as viscosity modifiers, stabilizers, and pH barriers are often included right into lathering remedies to boost foam determination and compatibility with concrete chemistry.
2.2 Influence of Foam Characteristics on Concrete Characteristic
The physical qualities of the generated foam– bubble dimension, size circulation, air material, and foam density– straight dictate the macroscopic habits of lightweight concrete.
Smaller sized, uniformly distributed bubbles enhance mechanical strength by lessening anxiety focus points and developing a much more homogeneous microstructure.
Conversely, larger or irregular bubbles can serve as defects, decreasing compressive stamina and boosting leaks in the structure.
Foam stability is similarly important; early collapse or coalescence throughout blending leads to non-uniform thickness, partition, and lowered insulation efficiency.
The air-void system likewise affects thermal conductivity, with finer, closed-cell structures giving remarkable insulation due to caught air’s low thermal diffusivity.
Additionally, the water content of the foam influences the water-cement proportion of the last mix, demanding specific calibration to stay clear of weakening the concrete matrix or postponing hydration.
Advanced foam generators now integrate real-time tracking and feedback systems to maintain regular foam output, guaranteeing reproducibility throughout batches.
3. Integration in Modern Building and Industrial Applications
3.1 Architectural and Non-Structural Uses of Foamed Concrete
Light-weight concrete created by means of foam generators is employed across a broad spectrum of building applications, varying from insulation panels and void loading to bearing walls and pavement systems.
In structure envelopes, frothed concrete provides excellent thermal and acoustic insulation, adding to energy-efficient layouts and minimized HVAC loads.
Its low density additionally reduces structural dead tons, allowing for smaller structures and longer spans in high-rise and bridge building and construction.
In civil design, it is made use of for trench backfilling, tunneling, and slope stablizing, where its self-leveling and low-stress attributes stop ground disruption and improve safety and security.
Precast producers utilize high-precision foam generators to create lightweight blocks, panels, and architectural elements with limited dimensional resistances and constant high quality.
Additionally, foamed concrete shows intrinsic fire resistance as a result of its reduced thermal conductivity and absence of natural components, making it suitable for fire-rated settings up and passive fire security systems.
3.2 Automation, Scalability, and On-Site Production Systems
Modern construction demands rapid, scalable, and trustworthy manufacturing of light-weight concrete, driving the integration of foam generators into automatic batching and pumping systems.
Fully automated plants can integrate foam generation with concrete mixing, water dosing, and additive injection, allowing constant manufacturing with very little human intervention.
Mobile foam generator devices are progressively released on building websites, enabling on-demand manufacture of foamed concrete straight at the point of use, decreasing transportation prices and product waste.
These systems are often equipped with electronic controls, remote surveillance, and data logging abilities to ensure conformity with engineering specs and high quality criteria.
The scalability of foam generation technology– from little portable devices to industrial-scale systems– supports its fostering in both established and emerging markets, promoting lasting structure practices globally.
4. Technical Advancements and Future Directions in Foam Generation
4.1 Smart Foam Generators and Real-Time Process Control
Emerging technologies in foam generator layout concentrate on boosting precision, performance, and flexibility via digitalization and sensor combination.
Smart foam generators equipped with pressure sensors, circulation meters, and optical bubble analyzers can dynamically change air-to-liquid ratios and monitor foam top quality in real time.
Machine learning formulas are being checked out to predict foam behavior based on ecological conditions, raw material variants, and historic performance information.
Such developments intend to reduce batch-to-batch variability and enhance product efficiency, especially in high-stakes applications like nuclear protecting or offshore building.
4.2 Sustainability, Environmental Effect, and Eco-friendly Material Integration
As the building market approaches decarbonization, foam generators contribute in reducing the environmental footprint of concrete.
By decreasing material thickness, less cement is required each quantity, straight reducing carbon monoxide two emissions associated with cement manufacturing.
In addition, foamed concrete can incorporate extra cementitious products (SCMs) such as fly ash, slag, or silica fume, enhancing sustainability without compromising performance.
Research study is also underway to create bio-based frothing agents stemmed from sustainable sources, decreasing dependence on petrochemical surfactants.
Future growths may include energy-efficient foam generation techniques, assimilation with carbon capture modern technologies, and recyclable concrete solutions made it possible for by steady cellular frameworks.
Finally, the lightweight concrete foam generator is far more than a mechanical gadget– it is a crucial enabler of advanced material engineering in modern building and construction.
By exactly managing the architecture of air spaces at the microscale, it changes standard concrete right into a multifunctional, sustainable, and high-performance product.
As technology advances, foam generators will certainly remain to drive technology in building science, framework durability, and ecological stewardship.
