Every component in a railway system should function well. This maintains the system risk-free and effective. Train spreading components are extremely essential. They provide support, link things, and conduct signals. Their high quality impacts just how steady the train network is. When you acquire these parts for South Africa, South America, or Russia, you need to locate great manufacturers. To be successful, you require to know the local technological policies. Here are 5 vital quality standards you must always adhere to.
1. Product Structure & Mechanical Features: The Foundation of Top quality
The performance of actors iron depends upon its specific chemical make-up and casting process, and must fulfill the international or local requirements of the target market. A dependable railway casting parts manufacturer will certainly supply complete material traceability.
1.1 Make-up Criteria: Must follow standards such as International Criteria (ISO), European Standards (EN), Russian GOST requirements, or those frequently utilized in South America like IRAM (Argentina) and ABNT NBR (Brazil). The material of damaging components like phosphorus and sulfur must be purely regulated.
1.2 Mechanical Properties: Concentrate on tensile strength, return stamina, solidity, and elongation. For ductile iron, describe criteria such as ISO 1083, EN 1563, or GOST 28394. Purchase must require distributors to supply product certifications and mechanical examination reports that follow the target market’s requirements.

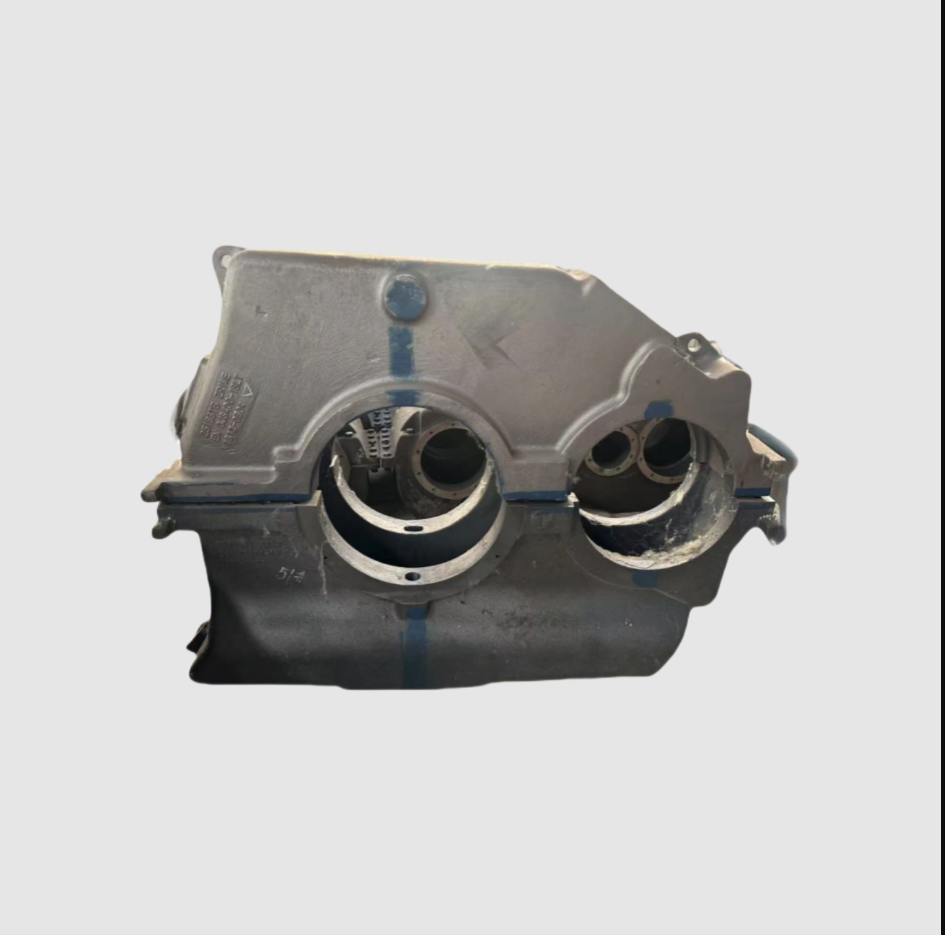

(Railway Cast Iron Gearbox)
2. Dimensional Precision & Resistance Control: Ensuring a “Perfect Fit”
Railway projects worldwide have rigorous requirements for dimensional interchangeability; any type of variance can impact system combination. Accuracy is a mark of remarkable train spreading makers.
2.1 Important Measurements: All user interface dimensions and installing opening positions for all train casting elements should be 100% evaluated.
2.2 Resistance Standards: Should stick to worldwide acknowledged requirements like ISO 2768, or particular resistance requirements explicitly agreed upon with the customer. For the Russian and CIS markets, special attention has to be paid to complying with relevant tolerance requirements in GOST 30893.
3. Restrictions on Casting Problems: Removing Inner Hidden Dangers
The approval standards for casting flaws should be clearly defined in agreements and based upon globally or regionally recognized requirements. Leading railway spreading components maker procedures employ extensive non-destructive testing.
3.1 Surface area Issues: Specifications like ISO 8062 can be referenced for assessing spreading surface quality. Fractures, cool shuts, and other problems influencing serviceability are not permitted.
3.2 Internal Flaws: For critical load-bearing railway spreading parts, non-destructive testing (e.g., ultrasonic, radiographic) need to be performed according to standards like ISO 4990, EN 12680, or the GOST R 55724 collection, with clear acceptance levels for problems.
4. Metallographic Structure & Internal Quality
The microscopic framework of the product is the essential basis for judging whether its internal high quality satisfies the standard. This is a critical check for any kind of professional railway casting parts manufacturer.
4.1 Ductile Iron: The assessment of nodularization price must adhere to requirements such as ISO 945-1 or GOST 3443 to ensure its mechanical properties satisfy the requirements for usage under intricate working conditions.
4.2 Graphite Morphology & Matrix Framework: The metallographic inspection report is a vital file for confirming the stability of the manufacturing process and should comply with the relevant international or local criteria.
(Railway Cast Iron Gearbox)
5. Anti-Corrosion Therapy & Surface Area Quality: Withstanding Harsh Environments
Offered South Africa’s seaside high salinity, South America’s exotic rain forest humidity, and Russia’s severe cool and de-icing salts, anti-corrosion treatment for railway spreading elements is critical.
5.1 Treatment Procedures: Define the type of anti-corrosion process, such as hot-dip galvanizing (ISO 1461), epoxy layer, etc, and define vital indications like finish thickness, bond ( e.g., ISO 2409), and salt spray resistance ( e.g., ISO 9227).
5.2 Regional Requirements: Have to take notice of details requirements of the target market, such as Russia’s GOST 9.307 anti-corrosion system qualification, or South Africa’s SANS (South African National Standard) requirements. A global railway spreading makers will be familiar with these diverse requirements.
Luoyang Fonyo Heavy Industries Co., Ltd. is a leading producer of heavy industrial castings and parts, specializing in supplying top quality steel spreadings, including carbon steel, high manganese steel, alloy steel, and heat-resistant steel spreadings. With an extensive solution design integrating design, casting, machining, and solution, Fonyo makes certain that each item satisfies strenuous quality and performance requirements to please the requiring demands of numerous heavy markets.
If you are looking for a trusted supplier of , Luoyang Fonyo Heavy Industries Co., Ltd. is your ideal choice. Visit Fonyo’s official website (www.railwaypart.com) for more product information and technical support!
