Introduction of 70TPS12 thyristor
70TPS12 thyristor is a high-performance semiconductor switching device widely used in power electronics. Its fast switching speed provides excellent system performance. This article will explore how to increase the switching speed of the 70TPS12 thyristor to optimize its performance further.

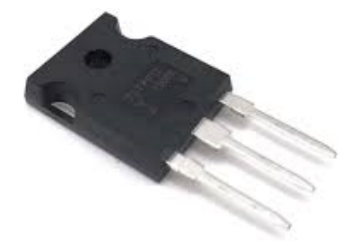

(70TPS12 thyristor)
70TPS12 thyristor is a four-layer semiconductor device with four semiconductor layers: P1, N1, P2, and N2. It utilizes the switching characteristics of the PN junction to achieve switching operations through control signals. When the anode voltage exceeds the cathode voltage, the PN junction is in a reverse bias state, and the device is cut off. When the positive terminal voltage is less than the negative terminal voltage, the PN junction is in a form of forward bias, and the device is in a conduction state.
What is the effect of increasing the switching speed of the 70TPS12 thyristor?
The fast switching speed brings many advantages to the 70TPS12 thyristor. First, high-speed switching operations can reduce the turn-on and turn-off times, thereby improving the response speed of the system. Secondly, fast switching speed can reduce the conduction loss of the device and enhance the energy efficiency of the system. In addition, high-speed switching can also minimize the impact on parasitic parameters, which is beneficial to lowering system volume and cost. Therefore, increasing the switching speed of the 70TPS12 thyristor is of great significance for optimizing system performance.
(70TPS12 thyristor)
How to increase the switching speed of 70TPS12 thyristor
To improve the switching speed of the 70TPS12 thyristor, you can optimize it from the following aspects:
1. Optimize device design
Optimizing the device design of the 70TPS12 thyristor is an effective way to increase the switching speed. First, the device’s on-resistance can be reduced, thereby reducing the on-time, which can be achieved by selecting low-resistance materials, optimizing structural design, and using advanced manufacturing processes. Secondly, optimizing the trigger circuit design of the device can improve the trigger speed and stability. For example, adopt a fast trigger circuit structure, optimize the parameters of components such as trigger resistors and capacitors, and select high-speed driver chips.
2. Optimize drive circuit design
The drive circuit is a vital part of controlling the 70TPS12 thyristor. Optimizing the drive circuit design can increase the switching speed. First, choosing a high-speed driver chip can speed up the size and response speed of the driving current. Secondly, an appropriate drive circuit structure can reduce signal transmission delay and improve triggering speed. In addition, optimizing the power supply design of the driver circuit can improve driver performance. For example, using components such as low internal resistance and low-noise power filters can reduce the impact of power supply fluctuations on the driver, thereby increasing the switching speed.
3. Reduce the impact of temperature
Temperature is one of the prominent factors that affect the switching speed of the 70TPS12 thyristor. High temperatures cause the carrier mobility of semiconductor materials to decrease, thereby increasing switching times. Therefore, reducing temperature effects is crucial to increase the switching speed. Measures such as heat sinks and forced air cooling can be used to reduce the operating temperature of the device. In addition, selecting materials with good thermal stability and optimizing device layout can also minimize the impact of temperature on switching speed.
4. Reduce overshoot and oscillation
Overshoot and oscillation are other factors that affect the switching speed of the 70TPS12 thyristor. Overshoot and oscillation cause additional power dissipation and device stress, thereby increasing switching times. Overshoot and oscillation can be reduced by softening the chopper circuit, adding damping components, and optimizing the buffer circuit design. In addition, reasonable selection of the width and amplitude of the trigger pulse can also effectively reduce the effects of overshoot and oscillation.
