1. Crystal Structure and Split Anisotropy
1.1 The 2H and 1T Polymorphs: Structural and Electronic Duality

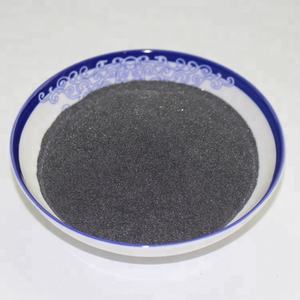

(Molybdenum Disulfide)
Molybdenum disulfide (MoS ₂) is a layered transition metal dichalcogenide (TMD) with a chemical formula containing one molybdenum atom sandwiched between two sulfur atoms in a trigonal prismatic sychronisation, developing covalently bound S– Mo– S sheets.
These specific monolayers are stacked vertically and held with each other by weak van der Waals forces, enabling very easy interlayer shear and exfoliation down to atomically slim two-dimensional (2D) crystals– a structural function main to its varied functional roles.
MoS ₂ exists in several polymorphic forms, the most thermodynamically steady being the semiconducting 2H stage (hexagonal symmetry), where each layer shows a straight bandgap of ~ 1.8 eV in monolayer type that transitions to an indirect bandgap (~ 1.3 eV) in bulk, a phenomenon essential for optoelectronic applications.
In contrast, the metastable 1T stage (tetragonal proportion) embraces an octahedral control and behaves as a metal conductor as a result of electron contribution from the sulfur atoms, making it possible for applications in electrocatalysis and conductive composites.
Stage changes between 2H and 1T can be caused chemically, electrochemically, or through pressure engineering, supplying a tunable system for making multifunctional tools.
The capacity to stabilize and pattern these stages spatially within a solitary flake opens paths for in-plane heterostructures with unique electronic domains.
1.2 Problems, Doping, and Side States
The performance of MoS two in catalytic and electronic applications is very conscious atomic-scale flaws and dopants.
Innate point defects such as sulfur vacancies function as electron contributors, raising n-type conductivity and functioning as energetic websites for hydrogen development responses (HER) in water splitting.
Grain boundaries and line flaws can either hamper cost transport or produce localized conductive pathways, relying on their atomic setup.
Managed doping with change steels (e.g., Re, Nb) or chalcogens (e.g., Se) enables fine-tuning of the band structure, carrier concentration, and spin-orbit combining impacts.
Notably, the edges of MoS ₂ nanosheets, especially the metal Mo-terminated (10– 10) sides, exhibit significantly higher catalytic activity than the inert basic plane, motivating the style of nanostructured catalysts with maximized side exposure.
( Molybdenum Disulfide)
These defect-engineered systems exemplify how atomic-level manipulation can change a normally occurring mineral right into a high-performance functional material.
2. Synthesis and Nanofabrication Strategies
2.1 Bulk and Thin-Film Production Approaches
Natural molybdenite, the mineral kind of MoS TWO, has been made use of for years as a strong lube, yet contemporary applications demand high-purity, structurally regulated synthetic kinds.
Chemical vapor deposition (CVD) is the leading approach for producing large-area, high-crystallinity monolayer and few-layer MoS two films on substratums such as SiO ₂/ Si, sapphire, or flexible polymers.
In CVD, molybdenum and sulfur forerunners (e.g., MoO five and S powder) are evaporated at high temperatures (700– 1000 ° C )under controlled atmospheres, enabling layer-by-layer growth with tunable domain dimension and alignment.
Mechanical peeling (“scotch tape method”) remains a benchmark for research-grade examples, yielding ultra-clean monolayers with minimal problems, though it does not have scalability.
Liquid-phase peeling, entailing sonication or shear mixing of mass crystals in solvents or surfactant remedies, creates colloidal diffusions of few-layer nanosheets suitable for finishings, composites, and ink formulas.
2.2 Heterostructure Integration and Tool Pattern
The true potential of MoS ₂ emerges when incorporated right into vertical or lateral heterostructures with other 2D materials such as graphene, hexagonal boron nitride (h-BN), or WSe ₂.
These van der Waals heterostructures make it possible for the design of atomically accurate tools, consisting of tunneling transistors, photodetectors, and light-emitting diodes (LEDs), where interlayer fee and energy transfer can be engineered.
Lithographic pattern and etching methods permit the fabrication of nanoribbons, quantum dots, and field-effect transistors (FETs) with network lengths to 10s of nanometers.
Dielectric encapsulation with h-BN protects MoS ₂ from environmental destruction and decreases charge scattering, substantially boosting provider movement and tool security.
These manufacture advancements are necessary for transitioning MoS two from research laboratory interest to sensible component in next-generation nanoelectronics.
3. Useful Features and Physical Mechanisms
3.1 Tribological Habits and Solid Lubrication
One of the earliest and most long-lasting applications of MoS two is as a completely dry solid lube in extreme atmospheres where liquid oils stop working– such as vacuum, heats, or cryogenic problems.
The reduced interlayer shear stamina of the van der Waals gap permits easy sliding between S– Mo– S layers, resulting in a coefficient of friction as low as 0.03– 0.06 under optimum problems.
Its efficiency is even more improved by solid attachment to steel surface areas and resistance to oxidation as much as ~ 350 ° C in air, past which MoO four formation enhances wear.
MoS two is widely used in aerospace devices, air pump, and gun parts, typically applied as a layer via burnishing, sputtering, or composite incorporation into polymer matrices.
Current researches reveal that moisture can break down lubricity by raising interlayer attachment, prompting research right into hydrophobic coatings or crossbreed lubricants for improved environmental security.
3.2 Electronic and Optoelectronic Reaction
As a direct-gap semiconductor in monolayer form, MoS ₂ exhibits strong light-matter communication, with absorption coefficients surpassing 10 five centimeters ⁻¹ and high quantum return in photoluminescence.
This makes it excellent for ultrathin photodetectors with quick feedback times and broadband sensitivity, from visible to near-infrared wavelengths.
Field-effect transistors based on monolayer MoS two demonstrate on/off proportions > 10 ⁸ and service provider wheelchairs as much as 500 centimeters ²/ V · s in put on hold samples, though substrate communications commonly limit useful worths to 1– 20 centimeters ²/ V · s.
Spin-valley combining, a repercussion of solid spin-orbit communication and busted inversion proportion, makes it possible for valleytronics– an unique paradigm for details encoding utilizing the valley degree of flexibility in momentum space.
These quantum sensations setting MoS two as a prospect for low-power reasoning, memory, and quantum computing elements.
4. Applications in Energy, Catalysis, and Arising Technologies
4.1 Electrocatalysis for Hydrogen Advancement Reaction (HER)
MoS two has actually become an encouraging non-precious choice to platinum in the hydrogen advancement reaction (HER), a key procedure in water electrolysis for environment-friendly hydrogen production.
While the basic plane is catalytically inert, edge websites and sulfur vacancies show near-optimal hydrogen adsorption free power (ΔG_H * ≈ 0), similar to Pt.
Nanostructuring approaches– such as creating up and down lined up nanosheets, defect-rich movies, or drugged crossbreeds with Ni or Co– maximize active website density and electric conductivity.
When incorporated right into electrodes with conductive sustains like carbon nanotubes or graphene, MoS two achieves high present thickness and long-lasting stability under acidic or neutral conditions.
More improvement is attained by stabilizing the metallic 1T stage, which improves innate conductivity and subjects extra energetic websites.
4.2 Adaptable Electronics, Sensors, and Quantum Devices
The mechanical adaptability, openness, and high surface-to-volume ratio of MoS two make it optimal for flexible and wearable electronic devices.
Transistors, reasoning circuits, and memory tools have been demonstrated on plastic substrates, enabling bendable displays, wellness displays, and IoT sensors.
MoS ₂-based gas sensors exhibit high level of sensitivity to NO ₂, NH FIVE, and H ₂ O because of charge transfer upon molecular adsorption, with response times in the sub-second array.
In quantum innovations, MoS ₂ hosts localized excitons and trions at cryogenic temperatures, and strain-induced pseudomagnetic areas can trap carriers, allowing single-photon emitters and quantum dots.
These growths highlight MoS ₂ not just as a useful product but as a system for exploring essential physics in lowered dimensions.
In summary, molybdenum disulfide exhibits the merging of timeless materials scientific research and quantum design.
From its old duty as a lubricating substance to its modern release in atomically thin electronic devices and energy systems, MoS two continues to redefine the borders of what is feasible in nanoscale products design.
As synthesis, characterization, and integration strategies advance, its effect across scientific research and modern technology is positioned to expand even additionally.
