1. Material Composition and Structural Style
1.1 Glass Chemistry and Round Architecture

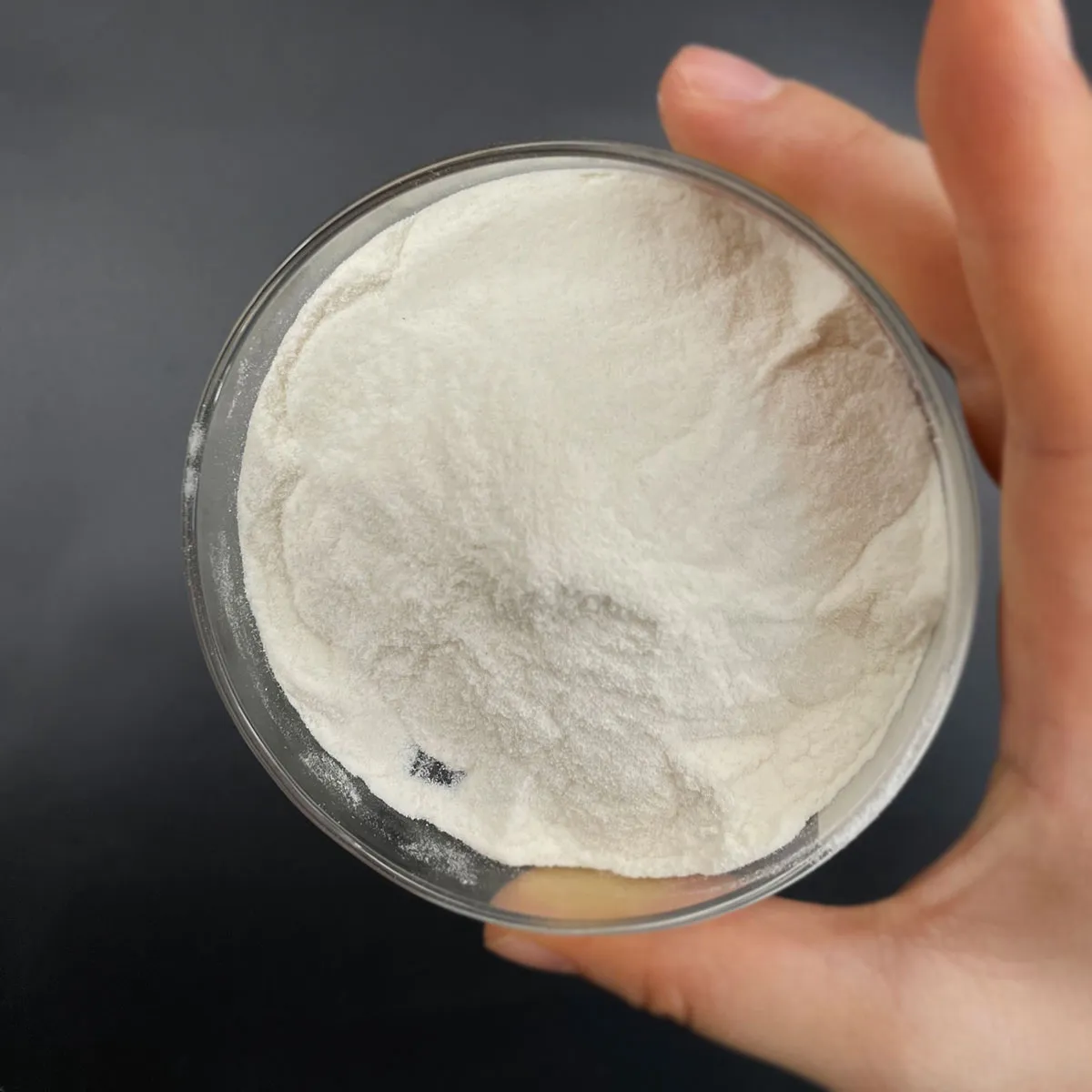

(Hollow glass microspheres)
Hollow glass microspheres (HGMs) are tiny, round fragments composed of alkali borosilicate or soda-lime glass, typically ranging from 10 to 300 micrometers in size, with wall densities in between 0.5 and 2 micrometers.
Their specifying attribute is a closed-cell, hollow inside that imparts ultra-low density– typically below 0.2 g/cm ³ for uncrushed balls– while keeping a smooth, defect-free surface essential for flowability and composite assimilation.
The glass make-up is crafted to balance mechanical stamina, thermal resistance, and chemical sturdiness; borosilicate-based microspheres supply superior thermal shock resistance and reduced antacids content, decreasing sensitivity in cementitious or polymer matrices.
The hollow structure is developed with a regulated expansion procedure during production, where precursor glass fragments consisting of an unpredictable blowing representative (such as carbonate or sulfate compounds) are heated in a furnace.
As the glass softens, interior gas generation develops inner pressure, causing the particle to inflate right into a best ball prior to fast cooling solidifies the framework.
This specific control over dimension, wall density, and sphericity allows foreseeable efficiency in high-stress engineering atmospheres.
1.2 Density, Strength, and Failure Systems
A critical performance metric for HGMs is the compressive strength-to-density ratio, which establishes their ability to make it through handling and solution tons without fracturing.
Business grades are categorized by their isostatic crush strength, ranging from low-strength rounds (~ 3,000 psi) suitable for coatings and low-pressure molding, to high-strength variations exceeding 15,000 psi used in deep-sea buoyancy modules and oil well sealing.
Failure commonly happens through flexible bending rather than brittle fracture, a habits controlled by thin-shell mechanics and influenced by surface area imperfections, wall surface uniformity, and internal stress.
As soon as fractured, the microsphere sheds its insulating and light-weight homes, highlighting the demand for mindful handling and matrix compatibility in composite layout.
Despite their delicacy under factor tons, the spherical geometry distributes stress evenly, enabling HGMs to endure considerable hydrostatic stress in applications such as subsea syntactic foams.
( Hollow glass microspheres)
2. Production and Quality Control Processes
2.1 Production Strategies and Scalability
HGMs are created industrially using flame spheroidization or rotating kiln expansion, both including high-temperature handling of raw glass powders or preformed grains.
In fire spheroidization, great glass powder is infused into a high-temperature fire, where surface area tension draws molten droplets into balls while internal gases broaden them into hollow structures.
Rotating kiln methods entail feeding forerunner grains into a revolving furnace, enabling continuous, large manufacturing with tight control over bit size circulation.
Post-processing actions such as sieving, air classification, and surface area treatment make certain consistent bit size and compatibility with target matrices.
Advanced producing currently consists of surface functionalization with silane combining agents to improve attachment to polymer materials, lowering interfacial slippage and enhancing composite mechanical properties.
2.2 Characterization and Efficiency Metrics
Quality assurance for HGMs relies upon a collection of logical strategies to verify essential criteria.
Laser diffraction and scanning electron microscopy (SEM) assess fragment dimension distribution and morphology, while helium pycnometry gauges real particle density.
Crush stamina is evaluated using hydrostatic pressure tests or single-particle compression in nanoindentation systems.
Mass and touched density measurements educate taking care of and mixing behavior, important for industrial formula.
Thermogravimetric evaluation (TGA) and differential scanning calorimetry (DSC) examine thermal security, with a lot of HGMs remaining steady up to 600– 800 ° C, depending upon structure.
These standard examinations make certain batch-to-batch consistency and allow trusted efficiency prediction in end-use applications.
3. Useful Characteristics and Multiscale Consequences
3.1 Density Decrease and Rheological Actions
The main feature of HGMs is to lower the thickness of composite products without dramatically endangering mechanical honesty.
By changing strong material or metal with air-filled balls, formulators accomplish weight savings of 20– 50% in polymer composites, adhesives, and cement systems.
This lightweighting is essential in aerospace, marine, and vehicle markets, where minimized mass converts to improved fuel effectiveness and payload capacity.
In fluid systems, HGMs influence rheology; their spherical form decreases viscosity compared to uneven fillers, enhancing flow and moldability, however high loadings can enhance thixotropy because of fragment interactions.
Correct diffusion is essential to prevent jumble and guarantee uniform properties throughout the matrix.
3.2 Thermal and Acoustic Insulation Characteristic
The entrapped air within HGMs provides superb thermal insulation, with effective thermal conductivity worths as low as 0.04– 0.08 W/(m · K), relying on quantity portion and matrix conductivity.
This makes them useful in protecting finishes, syntactic foams for subsea pipelines, and fire-resistant structure products.
The closed-cell structure also inhibits convective warmth transfer, boosting efficiency over open-cell foams.
Likewise, the impedance inequality in between glass and air scatters sound waves, giving modest acoustic damping in noise-control applications such as engine units and aquatic hulls.
While not as effective as dedicated acoustic foams, their twin duty as lightweight fillers and additional dampers includes functional worth.
4. Industrial and Emerging Applications
4.1 Deep-Sea Engineering and Oil & Gas Equipments
Among the most requiring applications of HGMs is in syntactic foams for deep-ocean buoyancy modules, where they are embedded in epoxy or vinyl ester matrices to develop composites that stand up to extreme hydrostatic pressure.
These materials keep positive buoyancy at midsts going beyond 6,000 meters, making it possible for self-governing underwater automobiles (AUVs), subsea sensing units, and offshore exploration devices to run without heavy flotation containers.
In oil well sealing, HGMs are included in cement slurries to lower thickness and prevent fracturing of weak formations, while additionally improving thermal insulation in high-temperature wells.
Their chemical inertness ensures lasting stability in saline and acidic downhole settings.
4.2 Aerospace, Automotive, and Lasting Technologies
In aerospace, HGMs are used in radar domes, interior panels, and satellite elements to minimize weight without compromising dimensional stability.
Automotive makers integrate them right into body panels, underbody coatings, and battery rooms for electrical automobiles to enhance power effectiveness and lower exhausts.
Emerging usages consist of 3D printing of light-weight frameworks, where HGM-filled resins enable complex, low-mass parts for drones and robotics.
In lasting building and construction, HGMs improve the insulating buildings of lightweight concrete and plasters, adding to energy-efficient structures.
Recycled HGMs from hazardous waste streams are also being explored to enhance the sustainability of composite products.
Hollow glass microspheres exhibit the power of microstructural design to change bulk material residential properties.
By integrating reduced density, thermal stability, and processability, they make it possible for innovations throughout marine, power, transport, and ecological markets.
As material science advances, HGMs will remain to play an essential function in the development of high-performance, light-weight materials for future innovations.
