When designers speak about products that can survive where steel melts and glass vaporizes, Silicon Carbide ceramics are typically on top of the checklist. This is not an obscure lab inquisitiveness; it is a product that silently powers industries, from the semiconductors in your phone to the brake discs in high-speed trains. What makes Silicon Carbide porcelains so exceptional is not just a checklist of residential or commercial properties, but a mix of severe firmness, high thermal conductivity, and shocking chemical resilience. In this write-up, we will certainly discover the science behind these high qualities, the ingenuity of the production procedures, and the vast array of applications that have made Silicon Carbide porcelains a keystone of contemporary high-performance engineering
1. The Atomic Architecture of Toughness

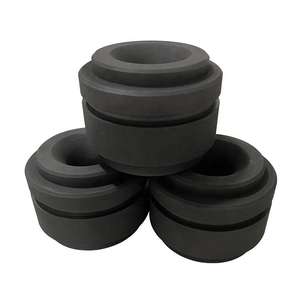

(Silicon Carbide Ceramics)
To comprehend why Silicon Carbide porcelains are so tough, we need to begin with their atomic structure. Silicon carbide is a compound of silicon and carbon, organized in a latticework where each atom is securely bound to four next-door neighbors in a tetrahedral geometry. This three-dimensional network of strong covalent bonds provides the product its hallmark residential or commercial properties: high solidity, high melting point, and resistance to contortion. Unlike metals, which have free electrons to bring both electrical energy and heat, Silicon Carbide is a semiconductor. Its electrons are more tightly bound, which suggests it can carry out electricity under certain problems yet stays an outstanding thermal conductor via vibrations of the crystal latticework, known as phonons
Among the most interesting aspects of Silicon Carbide porcelains is their polymorphism. The exact same fundamental chemical make-up can take shape into many different frameworks, called polytypes, which differ just in the stacking series of their atomic layers. The most typical polytypes are 3C-SiC, 4H-SiC, and 6H-SiC, each with somewhat different digital and thermal buildings. This convenience allows products researchers to choose the excellent polytype for a details application, whether it is for high-power electronic devices, high-temperature architectural parts, or optical tools
One more vital attribute of Silicon Carbide porcelains is their strong covalent bonding, which causes a high flexible modulus. This indicates that the product is extremely stiff and stands up to bending or extending under lots. At the very same time, Silicon Carbide porcelains show excellent flexural stamina, frequently reaching several hundred megapascals. This combination of tightness and stamina makes them excellent for applications where dimensional stability is crucial, such as in precision machinery or aerospace components
2. The Alchemy of Production
Developing a Silicon Carbide ceramic part is not as simple as baking clay in a kiln. The process begins with the production of high-purity Silicon Carbide powder, which can be synthesized through various methods, consisting of the Acheson procedure, chemical vapor deposition, or laser-assisted synthesis. Each method has its advantages and restrictions, but the goal is constantly to create a powder with the right fragment size, form, and purity for the designated application
When the powder is prepared, the next action is densification. This is where the actual challenge lies, as the strong covalent bonds in Silicon Carbide make it difficult for the fragments to move and pack together. To conquer this, makers use a selection of techniques, such as pressureless sintering, hot pressing, or stimulate plasma sintering. In pressureless sintering, the powder is warmed in a furnace to a heat in the existence of a sintering aid, which helps to lower the activation energy for densification. Warm pressing, on the other hand, uses both warmth and stress to the powder, enabling faster and much more total densification at reduced temperature levels
Another cutting-edge method is using additive manufacturing, or 3D printing, to create intricate Silicon Carbide ceramic parts. Methods like electronic light handling (DLP) and stereolithography allow for the specific control of the sizes and shape of the end product. In DLP, a photosensitive resin containing Silicon Carbide powder is treated by direct exposure to light, layer by layer, to develop the desired shape. The published part is then sintered at high temperature to remove the material and compress the ceramic. This method opens up brand-new possibilities for the manufacturing of elaborate elements that would be challenging or difficult to use typical methods
3. The Several Faces of Silicon Carbide Ceramics
The special buildings of Silicon Carbide ceramics make them suitable for a wide range of applications, from everyday customer items to innovative technologies. In the semiconductor industry, Silicon Carbide is made use of as a substratum material for high-power digital tools, such as Schottky diodes and MOSFETs. These devices can operate at greater voltages, temperature levels, and frequencies than conventional silicon-based tools, making them excellent for applications in electrical lorries, renewable resource systems, and wise grids
In the area of aerospace, Silicon Carbide ceramics are utilized in parts that have to withstand severe temperatures and mechanical stress. As an example, Silicon Carbide fiber-reinforced Silicon Carbide matrix compounds (SiC/SiC CMCs) are being created for use in jet engines and hypersonic lorries. These products can run at temperature levels surpassing 1200 levels celsius, offering significant weight savings and enhanced performance over traditional nickel-based superalloys
Silicon Carbide ceramics likewise play a vital duty in the manufacturing of high-temperature furnaces and kilns. Their high thermal conductivity and resistance to thermal shock make them ideal for components such as heating elements, crucibles, and heater furnishings. In the chemical handling industry, Silicon Carbide porcelains are used in equipment that must withstand rust and wear, such as pumps, valves, and warmth exchanger tubes. Their chemical inertness and high solidity make them suitable for handling hostile media, such as molten steels, acids, and antacid
4. The Future of Silicon Carbide Ceramics
As r & d in materials science remain to breakthrough, the future of Silicon Carbide porcelains looks appealing. New manufacturing strategies, such as additive manufacturing and nanotechnology, are opening up new opportunities for the manufacturing of complicated and high-performance parts. At the same time, the growing demand for energy-efficient and high-performance technologies is driving the fostering of Silicon Carbide ceramics in a wide range of markets
One area of specific interest is the growth of Silicon Carbide ceramics for quantum computer and quantum picking up. Certain polytypes of Silicon Carbide host issues that can function as quantum little bits, or qubits, which can be manipulated at space temperature. This makes Silicon Carbide an encouraging system for the growth of scalable and functional quantum technologies
One more exciting development is using Silicon Carbide porcelains in lasting power systems. For example, Silicon Carbide porcelains are being utilized in the manufacturing of high-efficiency solar cells and gas cells, where their high thermal conductivity and chemical stability can improve the performance and long life of these devices. As the globe continues to move towards an extra sustainable future, Silicon Carbide ceramics are likely to play a significantly crucial role
5. Conclusion: A Material for the Ages
( Silicon Carbide Ceramics)
In conclusion, Silicon Carbide porcelains are an exceptional class of products that incorporate severe solidity, high thermal conductivity, and chemical strength. Their one-of-a-kind residential properties make them excellent for a vast array of applications, from day-to-day customer products to innovative innovations. As research and development in materials scientific research remain to development, the future of Silicon Carbide porcelains looks encouraging, with brand-new manufacturing methods and applications emerging all the time. Whether you are an engineer, a scientist, or just someone that appreciates the wonders of modern-day materials, Silicon Carbide porcelains are sure to remain to astonish and influence
