Product Overview

Advanced structural porcelains, because of their distinct crystal framework and chemical bond qualities, show performance advantages that steels and polymer products can not match in extreme atmospheres. Alumina (Al Two O TWO), zirconium oxide (ZrO TWO), silicon carbide (SiC) and silicon nitride (Si four N ₄) are the 4 major mainstream engineering ceramics, and there are important differences in their microstructures: Al two O two belongs to the hexagonal crystal system and relies upon solid ionic bonds; ZrO ₂ has three crystal kinds: monoclinic (m), tetragonal (t) and cubic (c), and obtains unique mechanical buildings via stage adjustment strengthening mechanism; SiC and Si Two N ₄ are non-oxide porcelains with covalent bonds as the major component, and have stronger chemical stability. These structural differences directly lead to substantial distinctions in the preparation process, physical residential or commercial properties and engineering applications of the 4. This write-up will methodically examine the preparation-structure-performance connection of these 4 ceramics from the viewpoint of products science, and discover their potential customers for industrial application.

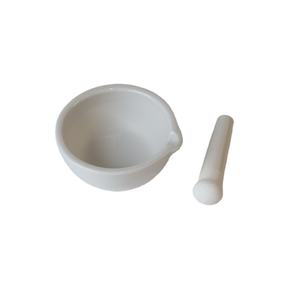

(Alumina Ceramic)

Prep work process and microstructure control

In terms of prep work procedure, the four porcelains show noticeable distinctions in technological courses. Alumina ceramics use a fairly standard sintering procedure, typically utilizing α-Al two O six powder with a pureness of greater than 99.5%, and sintering at 1600-1800 ° C after completely dry pushing. The secret to its microstructure control is to inhibit abnormal grain development, and 0.1-0.5 wt% MgO is usually included as a grain border diffusion inhibitor. Zirconia porcelains need to present stabilizers such as 3mol% Y ₂ O four to retain the metastable tetragonal phase (t-ZrO ₂), and use low-temperature sintering at 1450-1550 ° C to stay clear of too much grain development. The core process difficulty hinges on accurately controlling the t → m phase change temperature home window (Ms factor). Considering that silicon carbide has a covalent bond proportion of approximately 88%, solid-state sintering calls for a heat of greater than 2100 ° C and counts on sintering help such as B-C-Al to form a fluid stage. The response sintering technique (RBSC) can achieve densification at 1400 ° C by infiltrating Si+C preforms with silicon melt, however 5-15% complimentary Si will remain. The prep work of silicon nitride is one of the most complex, typically utilizing GPS (gas stress sintering) or HIP (hot isostatic pushing) procedures, adding Y ₂ O TWO-Al ₂ O six collection sintering help to develop an intercrystalline glass stage, and heat treatment after sintering to take shape the glass phase can dramatically enhance high-temperature performance.

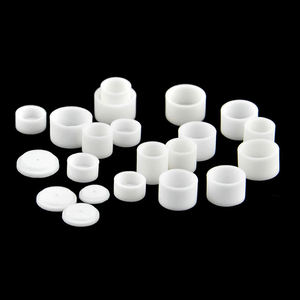

( Zirconia Ceramic)

Comparison of mechanical residential properties and reinforcing system

Mechanical homes are the core evaluation indicators of architectural ceramics. The 4 sorts of products show entirely various conditioning devices:

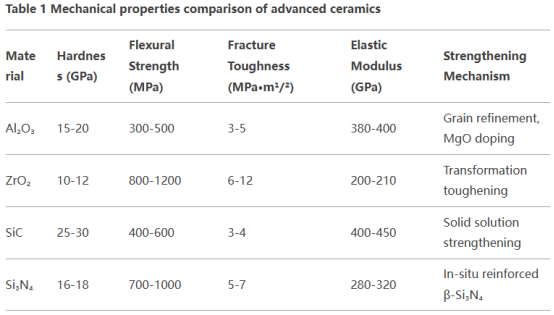

( Mechanical properties comparison of advanced ceramics)

Alumina mostly depends on great grain fortifying. When the grain dimension is lowered from 10μm to 1μm, the toughness can be increased by 2-3 times. The excellent toughness of zirconia originates from the stress-induced stage makeover system. The stress area at the crack suggestion activates the t → m phase makeover accompanied by a 4% quantity growth, causing a compressive stress securing impact. Silicon carbide can improve the grain boundary bonding strength via solid remedy of aspects such as Al-N-B, while the rod-shaped β-Si two N ₄ grains of silicon nitride can create a pull-out effect similar to fiber toughening. Crack deflection and bridging add to the enhancement of durability. It is worth keeping in mind that by building multiphase porcelains such as ZrO TWO-Si Four N Four or SiC-Al Two O FIVE, a variety of toughening systems can be worked with to make KIC exceed 15MPa · m ¹/ ².

Thermophysical buildings and high-temperature behavior

High-temperature stability is the vital advantage of architectural ceramics that distinguishes them from traditional materials:

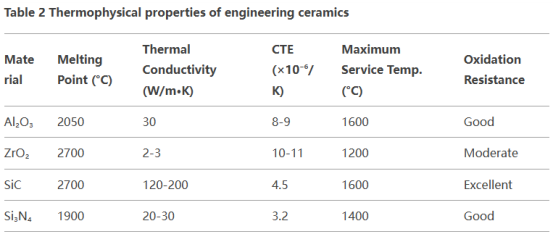

(Thermophysical properties of engineering ceramics)

Silicon carbide exhibits the most effective thermal administration efficiency, with a thermal conductivity of as much as 170W/m · K(similar to light weight aluminum alloy), which results from its straightforward Si-C tetrahedral structure and high phonon propagation rate. The low thermal development coefficient of silicon nitride (3.2 × 10 ⁻⁶/ K) makes it have superb thermal shock resistance, and the important ΔT worth can get to 800 ° C, which is especially suitable for repeated thermal cycling settings. Although zirconium oxide has the highest possible melting factor, the conditioning of the grain boundary glass stage at heat will certainly create a sharp drop in strength. By embracing nano-composite innovation, it can be increased to 1500 ° C and still keep 500MPa toughness. Alumina will experience grain border slide over 1000 ° C, and the addition of nano ZrO two can develop a pinning impact to prevent high-temperature creep.

Chemical stability and rust actions

In a destructive environment, the four types of porcelains show dramatically various failure mechanisms. Alumina will certainly liquify externally in solid acid (pH <2) and strong alkali (pH > 12) solutions, and the corrosion price boosts exponentially with increasing temperature level, getting to 1mm/year in steaming concentrated hydrochloric acid. Zirconia has good tolerance to not natural acids, however will go through low temperature level destruction (LTD) in water vapor environments over 300 ° C, and the t → m stage shift will certainly bring about the formation of a tiny split network. The SiO ₂ protective layer formed on the surface area of silicon carbide offers it excellent oxidation resistance below 1200 ° C, however soluble silicates will certainly be generated in liquified alkali metal atmospheres. The deterioration behavior of silicon nitride is anisotropic, and the corrosion price along the c-axis is 3-5 times that of the a-axis. NH ₃ and Si(OH)₄ will certainly be generated in high-temperature and high-pressure water vapor, causing material bosom. By enhancing the make-up, such as preparing O’-SiAlON ceramics, the alkali deterioration resistance can be enhanced by more than 10 times.

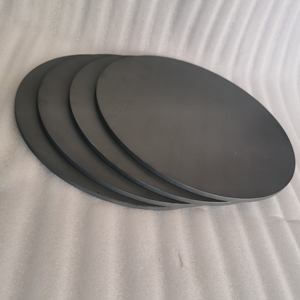

( Silicon Carbide Disc)

Regular Design Applications and Case Studies

In the aerospace field, NASA uses reaction-sintered SiC for the leading edge elements of the X-43A hypersonic airplane, which can stand up to 1700 ° C wind resistant home heating. GE Air travel uses HIP-Si three N ₄ to make wind turbine rotor blades, which is 60% lighter than nickel-based alloys and allows greater operating temperature levels. In the clinical field, the fracture strength of 3Y-TZP zirconia all-ceramic crowns has actually gotten to 1400MPa, and the service life can be encompassed greater than 15 years with surface area gradient nano-processing. In the semiconductor sector, high-purity Al two O two porcelains (99.99%) are used as dental caries products for wafer etching equipment, and the plasma rust rate is <0.1μm/hour. The SiC-Al₂O₃ composite armor developed by Kyocera in Japan can achieve a V50 ballistic limit of 1800m/s, which is 30% thinner than traditional Al₂O₃ armor.

Technical challenges and development trends

The main technical bottlenecks currently faced include: long-term aging of zirconia (strength decay of 30-50% after 10 years), sintering deformation control of large-size SiC ceramics (warpage of > 500mm parts < 0.1 mm ), and high manufacturing cost of silicon nitride(aerospace-grade HIP-Si ₃ N four gets to $ 2000/kg). The frontier growth directions are focused on: one Bionic structure layout(such as covering split framework to boost durability by 5 times); two Ultra-high temperature sintering innovation( such as stimulate plasma sintering can achieve densification within 10 minutes); two Intelligent self-healing porcelains (having low-temperature eutectic phase can self-heal cracks at 800 ° C); ④ Additive manufacturing modern technology (photocuring 3D printing precision has actually reached ± 25μm).


( Silicon Nitride Ceramics Tube)

Future development fads

In a thorough comparison, alumina will still dominate the typical ceramic market with its price advantage, zirconia is irreplaceable in the biomedical area, silicon carbide is the recommended product for severe atmospheres, and silicon nitride has terrific possible in the field of premium tools. In the following 5-10 years, via the combination of multi-scale architectural regulation and intelligent manufacturing innovation, the performance borders of engineering ceramics are expected to attain new breakthroughs: as an example, the style of nano-layered SiC/C ceramics can attain durability of 15MPa · m ¹/ ², and the thermal conductivity of graphene-modified Al two O ₃ can be increased to 65W/m · K. With the improvement of the “twin carbon” approach, the application scale of these high-performance porcelains in brand-new power (fuel cell diaphragms, hydrogen storage materials), green manufacturing (wear-resistant components life enhanced by 3-5 times) and various other fields is anticipated to maintain a typical yearly development price of more than 12%.

Vendor

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials and products. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested in Aluminum nitride ceramic, please feel free to contact us.(nanotrun@yahoo.com)

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.
