1. The Science and Framework of Alumina Porcelain Materials
1.1 Crystallography and Compositional Variants of Light Weight Aluminum Oxide

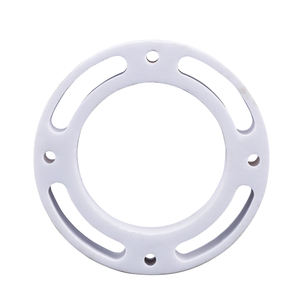

(Alumina Ceramics Rings)
Alumina ceramic rings are manufactured from light weight aluminum oxide (Al ₂ O FIVE), a compound renowned for its remarkable equilibrium of mechanical stamina, thermal stability, and electric insulation.
One of the most thermodynamically stable and industrially pertinent phase of alumina is the alpha (α) phase, which takes shape in a hexagonal close-packed (HCP) structure belonging to the diamond household.
In this setup, oxygen ions develop a dense latticework with light weight aluminum ions inhabiting two-thirds of the octahedral interstitial sites, leading to an extremely stable and durable atomic structure.
While pure alumina is in theory 100% Al Two O SIX, industrial-grade materials commonly include little percentages of ingredients such as silica (SiO ₂), magnesia (MgO), or yttria (Y ₂ O THREE) to regulate grain development during sintering and enhance densification.
Alumina ceramics are categorized by pureness degrees: 96%, 99%, and 99.8% Al Two O five are common, with greater purity correlating to improved mechanical properties, thermal conductivity, and chemical resistance.
The microstructure– especially grain size, porosity, and stage circulation– plays an essential function in identifying the final performance of alumina rings in solution atmospheres.
1.2 Key Physical and Mechanical Quality
Alumina ceramic rings show a collection of residential or commercial properties that make them essential popular industrial setups.
They possess high compressive toughness (up to 3000 MPa), flexural stamina (typically 350– 500 MPa), and superb firmness (1500– 2000 HV), enabling resistance to use, abrasion, and contortion under load.
Their low coefficient of thermal growth (around 7– 8 × 10 ⁻⁶/ K) guarantees dimensional stability across vast temperature ranges, minimizing thermal anxiety and fracturing throughout thermal cycling.
Thermal conductivity ranges from 20 to 30 W/m · K, depending on purity, enabling modest warm dissipation– adequate for lots of high-temperature applications without the need for active air conditioning.

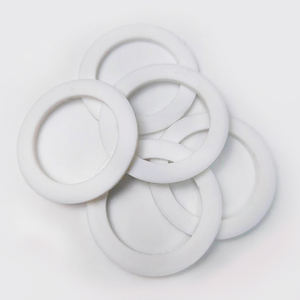

( Alumina Ceramics Ring)
Electrically, alumina is a superior insulator with a volume resistivity surpassing 10 ¹⁴ Ω · cm and a dielectric stamina of around 10– 15 kV/mm, making it suitable for high-voltage insulation components.
Furthermore, alumina demonstrates excellent resistance to chemical assault from acids, alkalis, and molten metals, although it is at risk to strike by solid antacid and hydrofluoric acid at elevated temperature levels.
2. Manufacturing and Accuracy Design of Alumina Rings
2.1 Powder Handling and Shaping Methods
The manufacturing of high-performance alumina ceramic rings starts with the choice and prep work of high-purity alumina powder.
Powders are commonly synthesized by means of calcination of aluminum hydroxide or via progressed methods like sol-gel handling to achieve fine bit dimension and narrow size circulation.
To create the ring geometry, several shaping methods are utilized, consisting of:
Uniaxial pressing: where powder is compacted in a die under high pressure to form a “green” ring.
Isostatic pushing: applying consistent stress from all directions using a fluid tool, leading to higher density and even more consistent microstructure, particularly for facility or large rings.
Extrusion: appropriate for long cylindrical kinds that are later on reduced into rings, frequently used for lower-precision applications.
Injection molding: utilized for intricate geometries and tight resistances, where alumina powder is combined with a polymer binder and infused into a mold and mildew.
Each method influences the final density, grain alignment, and issue circulation, requiring careful procedure choice based on application demands.
2.2 Sintering and Microstructural Growth
After forming, the eco-friendly rings undertake high-temperature sintering, normally between 1500 ° C and 1700 ° C in air or regulated atmospheres.
During sintering, diffusion systems drive particle coalescence, pore elimination, and grain growth, bring about a fully thick ceramic body.
The price of home heating, holding time, and cooling down account are exactly controlled to prevent breaking, bending, or exaggerated grain growth.
Ingredients such as MgO are usually presented to prevent grain border movement, causing a fine-grained microstructure that improves mechanical stamina and integrity.
Post-sintering, alumina rings may undergo grinding and washing to achieve limited dimensional resistances ( ± 0.01 mm) and ultra-smooth surface finishes (Ra < 0.1 µm), crucial for sealing, bearing, and electric insulation applications.
3. Useful Performance and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are extensively used in mechanical systems as a result of their wear resistance and dimensional security.
Trick applications consist of:
Sealing rings in pumps and valves, where they stand up to disintegration from rough slurries and harsh fluids in chemical processing and oil & gas industries.
Bearing elements in high-speed or destructive atmospheres where metal bearings would deteriorate or require constant lubrication.
Overview rings and bushings in automation devices, providing low friction and lengthy service life without the demand for oiling.
Put on rings in compressors and wind turbines, lessening clearance in between rotating and fixed parts under high-pressure problems.
Their capability to keep performance in completely dry or chemically aggressive environments makes them above lots of metal and polymer choices.
3.2 Thermal and Electric Insulation Roles
In high-temperature and high-voltage systems, alumina rings serve as vital shielding components.
They are used as:
Insulators in heating elements and heater components, where they support repellent wires while enduring temperatures above 1400 ° C.
Feedthrough insulators in vacuum cleaner and plasma systems, protecting against electrical arcing while preserving hermetic seals.
Spacers and assistance rings in power electronics and switchgear, separating conductive parts in transformers, breaker, and busbar systems.
Dielectric rings in RF and microwave devices, where their reduced dielectric loss and high malfunction strength make certain signal stability.
The combination of high dielectric strength and thermal stability allows alumina rings to function dependably in environments where organic insulators would degrade.
4. Product Innovations and Future Overview
4.1 Compound and Doped Alumina Solutions
To even more improve efficiency, researchers and suppliers are developing advanced alumina-based composites.
Instances consist of:
Alumina-zirconia (Al ₂ O SIX-ZrO ₂) compounds, which show improved crack sturdiness with makeover toughening systems.
Alumina-silicon carbide (Al two O FIVE-SiC) nanocomposites, where nano-sized SiC bits enhance firmness, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can customize grain limit chemistry to improve high-temperature stamina and oxidation resistance.
These hybrid materials expand the operational envelope of alumina rings into even more severe conditions, such as high-stress vibrant loading or fast thermal cycling.
4.2 Emerging Patterns and Technical Integration
The future of alumina ceramic rings lies in clever integration and precision production.
Trends include:
Additive production (3D printing) of alumina elements, making it possible for complicated internal geometries and personalized ring styles previously unattainable with conventional techniques.
Practical grading, where structure or microstructure varies throughout the ring to optimize efficiency in different zones (e.g., wear-resistant external layer with thermally conductive core).
In-situ surveillance through ingrained sensing units in ceramic rings for predictive upkeep in commercial machinery.
Enhanced usage in renewable energy systems, such as high-temperature fuel cells and concentrated solar power plants, where product integrity under thermal and chemical tension is critical.
As industries require greater efficiency, longer lifespans, and minimized maintenance, alumina ceramic rings will certainly remain to play an essential role in allowing next-generation design remedies.
5. Provider
Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality alumina a, please feel free to contact us. (nanotrun@yahoo.com)
