1.1 Make-up and Polymorphic Framework

(Silicon Carbide Ceramics)

Silicon carbide (SiC) is a covalent ceramic compound made up of silicon and carbon atoms in a 1:1 stoichiometric ratio, renowned for its remarkable solidity, thermal conductivity, and chemical inertness.

It exists in over 250 polytypes– crystal structures differing in piling sequences– amongst which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are one of the most technically appropriate.

The solid directional covalent bonds (Si– C bond energy ~ 318 kJ/mol) cause a high melting point (~ 2700 ° C), reduced thermal expansion (~ 4.0 × 10 ⁻⁶/ K), and outstanding resistance to thermal shock.

Unlike oxide porcelains such as alumina, SiC does not have a native lustrous stage, adding to its stability in oxidizing and destructive ambiences approximately 1600 ° C.

Its vast bandgap (2.3– 3.3 eV, depending on polytype) likewise endows it with semiconductor homes, allowing dual usage in structural and digital applications.

1.2 Sintering Difficulties and Densification Approaches

Pure SiC is incredibly tough to densify due to its covalent bonding and reduced self-diffusion coefficients, demanding the use of sintering aids or advanced handling techniques.

Reaction-bonded SiC (RB-SiC) is generated by infiltrating porous carbon preforms with molten silicon, forming SiC sitting; this approach yields near-net-shape elements with residual silicon (5– 20%).

Solid-state sintered SiC (SSiC) uses boron and carbon additives to advertise densification at ~ 2000– 2200 ° C under inert atmosphere, accomplishing > 99% theoretical density and premium mechanical homes.

Liquid-phase sintered SiC (LPS-SiC) employs oxide additives such as Al Two O TWO– Y TWO O ₃, creating a transient liquid that improves diffusion however might minimize high-temperature stamina as a result of grain-boundary phases.

Warm pushing and spark plasma sintering (SPS) supply rapid, pressure-assisted densification with great microstructures, suitable for high-performance elements needing very little grain development.

2. Mechanical and Thermal Efficiency Characteristics

2.1 Toughness, Firmness, and Use Resistance

Silicon carbide porcelains exhibit Vickers firmness values of 25– 30 GPa, 2nd only to diamond and cubic boron nitride amongst design products.

Their flexural toughness usually varies from 300 to 600 MPa, with fracture durability (K_IC) of 3– 5 MPa · m ¹/ TWO– moderate for porcelains yet improved with microstructural engineering such as whisker or fiber support.

The combination of high solidity and elastic modulus (~ 410 Grade point average) makes SiC extremely resistant to rough and erosive wear, exceeding tungsten carbide and hardened steel in slurry and particle-laden environments.

( Silicon Carbide Ceramics)

In commercial applications such as pump seals, nozzles, and grinding media, SiC components demonstrate service lives a number of times much longer than conventional choices.

Its reduced density (~ 3.1 g/cm TWO) additional adds to use resistance by minimizing inertial forces in high-speed rotating parts.

2.2 Thermal Conductivity and Security

Among SiC’s most distinguishing features is its high thermal conductivity– varying from 80 to 120 W/(m · K )for polycrystalline types, and as much as 490 W/(m · K) for single-crystal 4H-SiC– surpassing most metals except copper and light weight aluminum.

This property allows effective heat dissipation in high-power digital substrates, brake discs, and heat exchanger components.

Coupled with low thermal development, SiC displays impressive thermal shock resistance, evaluated by the R-parameter (σ(1– ν)k/ αE), where high worths indicate durability to quick temperature modifications.

For instance, SiC crucibles can be heated from room temperature to 1400 ° C in minutes without splitting, an accomplishment unattainable for alumina or zirconia in comparable problems.

Additionally, SiC maintains stamina up to 1400 ° C in inert atmospheres, making it excellent for furnace fixtures, kiln furniture, and aerospace parts exposed to severe thermal cycles.

3. Chemical Inertness and Deterioration Resistance

3.1 Behavior in Oxidizing and Reducing Environments

At temperatures listed below 800 ° C, SiC is extremely steady in both oxidizing and reducing environments.

Over 800 ° C in air, a protective silica (SiO ₂) layer types on the surface area through oxidation (SiC + 3/2 O TWO → SiO TWO + CARBON MONOXIDE), which passivates the product and reduces more destruction.

However, in water vapor-rich or high-velocity gas streams over 1200 ° C, this silica layer can volatilize as Si(OH)₄, bring about sped up economic downturn– an important factor to consider in turbine and burning applications.

In decreasing atmospheres or inert gases, SiC continues to be steady approximately its disintegration temperature (~ 2700 ° C), without any phase modifications or stamina loss.

This security makes it ideal for liquified steel handling, such as aluminum or zinc crucibles, where it stands up to wetting and chemical assault far better than graphite or oxides.

3.2 Resistance to Acids, Alkalis, and Molten Salts

Silicon carbide is essentially inert to all acids except hydrofluoric acid (HF) and solid oxidizing acid blends (e.g., HF– HNO FOUR).

It reveals outstanding resistance to alkalis up to 800 ° C, though prolonged exposure to molten NaOH or KOH can create surface area etching via formation of soluble silicates.

In molten salt settings– such as those in focused solar energy (CSP) or nuclear reactors– SiC demonstrates exceptional rust resistance contrasted to nickel-based superalloys.

This chemical effectiveness underpins its usage in chemical procedure devices, including shutoffs, linings, and warm exchanger tubes handling aggressive media like chlorine, sulfuric acid, or seawater.

4. Industrial Applications and Arising Frontiers

4.1 Established Uses in Energy, Defense, and Manufacturing

Silicon carbide ceramics are indispensable to various high-value commercial systems.

In the power industry, they function as wear-resistant liners in coal gasifiers, parts in nuclear gas cladding (SiC/SiC composites), and substrates for high-temperature solid oxide gas cells (SOFCs).

Protection applications include ballistic armor plates, where SiC’s high hardness-to-density ratio supplies exceptional defense versus high-velocity projectiles compared to alumina or boron carbide at reduced cost.

In production, SiC is utilized for precision bearings, semiconductor wafer taking care of components, and unpleasant blasting nozzles due to its dimensional security and pureness.

Its use in electrical car (EV) inverters as a semiconductor substrate is rapidly growing, driven by effectiveness gains from wide-bandgap electronic devices.

4.2 Next-Generation Advancements and Sustainability

Continuous research study focuses on SiC fiber-reinforced SiC matrix composites (SiC/SiC), which display pseudo-ductile actions, boosted toughness, and maintained strength above 1200 ° C– ideal for jet engines and hypersonic car leading edges.

Additive production of SiC via binder jetting or stereolithography is advancing, allowing complicated geometries formerly unattainable through traditional forming techniques.

From a sustainability perspective, SiC’s longevity decreases replacement frequency and lifecycle emissions in commercial systems.

Recycling of SiC scrap from wafer slicing or grinding is being developed with thermal and chemical healing processes to reclaim high-purity SiC powder.

As sectors push towards greater effectiveness, electrification, and extreme-environment procedure, silicon carbide-based ceramics will remain at the leading edge of innovative products engineering, connecting the space in between architectural durability and practical adaptability.

5. Supplier

TRUNNANO is a supplier of Spherical Tungsten Powder with over 12 years of experience in nano-building energy conservation and nanotechnology development. It accepts payment via Credit Card, T/T, West Union and Paypal. Trunnano will ship the goods to customers overseas through FedEx, DHL, by air, or by sea. If you want to know more about Spherical Tungsten Powder, please feel free to contact us and send an inquiry.
Tags: silicon carbide ceramic,silicon carbide ceramic products, industry ceramic

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Atomic Design and Stage Stability

(Alumina Ceramics)

Alumina ceramics, largely composed of light weight aluminum oxide (Al two O FIVE), represent one of one of the most commonly made use of classes of innovative ceramics because of their phenomenal equilibrium of mechanical stamina, thermal strength, and chemical inertness.

At the atomic degree, the efficiency of alumina is rooted in its crystalline framework, with the thermodynamically secure alpha phase (α-Al two O FOUR) being the dominant form used in design applications.

This phase takes on a rhombohedral crystal system within the hexagonal close-packed (HCP) latticework, where oxygen anions form a dense arrangement and aluminum cations occupy two-thirds of the octahedral interstitial sites.

The resulting structure is highly secure, adding to alumina’s high melting point of approximately 2072 ° C and its resistance to decomposition under extreme thermal and chemical conditions.

While transitional alumina phases such as gamma (γ), delta (δ), and theta (θ) exist at lower temperatures and show greater surface areas, they are metastable and irreversibly transform right into the alpha stage upon heating above 1100 ° C, making α-Al ₂ O ₃ the exclusive phase for high-performance architectural and functional components.

1.2 Compositional Grading and Microstructural Engineering

The residential or commercial properties of alumina ceramics are not taken care of however can be tailored via regulated variants in pureness, grain size, and the enhancement of sintering help.

High-purity alumina (≥ 99.5% Al ₂ O TWO) is used in applications requiring maximum mechanical stamina, electrical insulation, and resistance to ion diffusion, such as in semiconductor processing and high-voltage insulators.

Lower-purity qualities (varying from 85% to 99% Al ₂ O THREE) commonly include additional stages like mullite (3Al ₂ O FOUR · 2SiO TWO) or glazed silicates, which enhance sinterability and thermal shock resistance at the expenditure of hardness and dielectric efficiency.

An essential factor in performance optimization is grain dimension control; fine-grained microstructures, attained via the enhancement of magnesium oxide (MgO) as a grain development prevention, significantly enhance crack sturdiness and flexural strength by restricting fracture propagation.

Porosity, also at low degrees, has a detrimental result on mechanical stability, and fully thick alumina ceramics are normally created by means of pressure-assisted sintering techniques such as hot pressing or hot isostatic pressing (HIP).

The interaction between make-up, microstructure, and processing defines the practical envelope within which alumina ceramics run, enabling their usage throughout a substantial spectrum of industrial and technical domain names.

( Alumina Ceramics)

2. Mechanical and Thermal Performance in Demanding Environments

2.1 Toughness, Hardness, and Put On Resistance

Alumina ceramics exhibit an one-of-a-kind combination of high firmness and modest crack durability, making them optimal for applications entailing unpleasant wear, disintegration, and influence.

With a Vickers firmness typically varying from 15 to 20 GPa, alumina rankings amongst the hardest engineering materials, gone beyond only by diamond, cubic boron nitride, and specific carbides.

This severe hardness translates right into exceptional resistance to damaging, grinding, and bit impingement, which is made use of in components such as sandblasting nozzles, reducing tools, pump seals, and wear-resistant liners.

Flexural strength values for thick alumina array from 300 to 500 MPa, relying on pureness and microstructure, while compressive toughness can go beyond 2 GPa, allowing alumina components to stand up to high mechanical lots without contortion.

In spite of its brittleness– an usual quality among ceramics– alumina’s performance can be maximized via geometric layout, stress-relief attributes, and composite reinforcement approaches, such as the consolidation of zirconia particles to induce improvement toughening.

2.2 Thermal Habits and Dimensional Security

The thermal homes of alumina porcelains are central to their use in high-temperature and thermally cycled environments.

With a thermal conductivity of 20– 30 W/m · K– higher than a lot of polymers and equivalent to some metals– alumina efficiently dissipates heat, making it ideal for heat sinks, insulating substratums, and heater parts.

Its reduced coefficient of thermal development (~ 8 × 10 ⁻⁶/ K) makes sure marginal dimensional modification during heating and cooling, decreasing the threat of thermal shock fracturing.

This stability is specifically valuable in applications such as thermocouple defense tubes, ignition system insulators, and semiconductor wafer taking care of systems, where specific dimensional control is vital.

Alumina keeps its mechanical honesty as much as temperature levels of 1600– 1700 ° C in air, past which creep and grain boundary gliding might initiate, depending upon purity and microstructure.

In vacuum or inert atmospheres, its efficiency expands even further, making it a favored material for space-based instrumentation and high-energy physics experiments.

3. Electrical and Dielectric Qualities for Advanced Technologies

3.1 Insulation and High-Voltage Applications

Among one of the most substantial practical qualities of alumina porcelains is their exceptional electric insulation ability.

With a quantity resistivity exceeding 10 ¹⁴ Ω · cm at area temperature and a dielectric stamina of 10– 15 kV/mm, alumina acts as a trustworthy insulator in high-voltage systems, consisting of power transmission devices, switchgear, and digital packaging.

Its dielectric constant (εᵣ ≈ 9– 10 at 1 MHz) is relatively stable across a broad frequency variety, making it suitable for usage in capacitors, RF parts, and microwave substrates.

Reduced dielectric loss (tan δ < 0.0005) ensures minimal energy dissipation in alternating present (AC) applications, improving system performance and decreasing warmth generation.

In published circuit boards (PCBs) and hybrid microelectronics, alumina substrates give mechanical support and electric isolation for conductive traces, making it possible for high-density circuit combination in rough atmospheres.

3.2 Performance in Extreme and Sensitive Settings

Alumina ceramics are distinctly suited for use in vacuum cleaner, cryogenic, and radiation-intensive environments because of their low outgassing prices and resistance to ionizing radiation.

In bit accelerators and blend activators, alumina insulators are utilized to separate high-voltage electrodes and diagnostic sensing units without presenting pollutants or weakening under prolonged radiation direct exposure.

Their non-magnetic nature additionally makes them perfect for applications involving strong electromagnetic fields, such as magnetic resonance imaging (MRI) systems and superconducting magnets.

Moreover, alumina’s biocompatibility and chemical inertness have actually led to its adoption in medical gadgets, consisting of oral implants and orthopedic components, where long-term stability and non-reactivity are extremely important.

4. Industrial, Technological, and Arising Applications

4.1 Role in Industrial Machinery and Chemical Handling

Alumina ceramics are extensively used in industrial devices where resistance to wear, corrosion, and high temperatures is essential.

Parts such as pump seals, shutoff seats, nozzles, and grinding media are generally produced from alumina because of its ability to stand up to rough slurries, hostile chemicals, and raised temperature levels.

In chemical handling plants, alumina cellular linings safeguard reactors and pipelines from acid and antacid assault, expanding equipment life and reducing upkeep prices.

Its inertness likewise makes it ideal for use in semiconductor construction, where contamination control is vital; alumina chambers and wafer watercrafts are revealed to plasma etching and high-purity gas atmospheres without seeping contaminations.

4.2 Integration into Advanced Production and Future Technologies

Past traditional applications, alumina porcelains are playing a progressively crucial duty in arising modern technologies.

In additive manufacturing, alumina powders are used in binder jetting and stereolithography (SLA) processes to make facility, high-temperature-resistant elements for aerospace and energy systems.

Nanostructured alumina films are being discovered for catalytic supports, sensors, and anti-reflective finishings due to their high surface area and tunable surface area chemistry.

Additionally, alumina-based composites, such as Al ₂ O ₃-ZrO Two or Al Two O ₃-SiC, are being developed to get over the fundamental brittleness of monolithic alumina, offering enhanced durability and thermal shock resistance for next-generation structural materials.

As industries continue to press the borders of performance and reliability, alumina porcelains continue to be at the center of material innovation, linking the gap in between architectural effectiveness and functional versatility.

In recap, alumina porcelains are not just a class of refractory products yet a cornerstone of modern engineering, making it possible for technological progress across energy, electronic devices, healthcare, and industrial automation.

Their special combination of properties– rooted in atomic framework and refined with sophisticated processing– ensures their ongoing importance in both established and emerging applications.

As product scientific research advances, alumina will most certainly stay a crucial enabler of high-performance systems running at the edge of physical and environmental extremes.

5. Supplier

Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality alumina a, please feel free to contact us. (nanotrun@yahoo.com)
Tags: Alumina Ceramics, alumina, aluminum oxide

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

Light weight aluminum nitride (AlN) is a high-performance ceramic product that has actually gained prevalent acknowledgment for its extraordinary thermal conductivity, electric insulation, and mechanical security at raised temperature levels. With a hexagonal wurtzite crystal framework, AlN exhibits a special mix of residential or commercial properties that make it one of the most suitable substrate material for applications in electronics, optoelectronics, power components, and high-temperature environments. Its capacity to effectively dissipate warm while keeping superb dielectric strength placements AlN as an exceptional option to traditional ceramic substrates such as alumina and beryllium oxide. This short article checks out the basic characteristics of aluminum nitride porcelains, looks into manufacture strategies, and highlights its vital duties across innovative technological domain names.

(Aluminum Nitride Ceramics)

Crystal Structure and Fundamental Characteristic

The performance of aluminum nitride as a substrate material is greatly determined by its crystalline framework and intrinsic physical buildings. AlN adopts a wurtzite-type latticework made up of rotating aluminum and nitrogen atoms, which adds to its high thermal conductivity– typically exceeding 180 W/(m · K), with some high-purity examples accomplishing over 320 W/(m · K). This value significantly exceeds those of other widely utilized ceramic products, including alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).

Along with its thermal efficiency, AlN has a large bandgap of around 6.2 eV, resulting in excellent electrical insulation residential or commercial properties even at high temperatures. It likewise shows low thermal expansion (CTE ≈ 4.5 × 10 ⁻⁶/ K), which closely matches that of silicon and gallium arsenide, making it an optimal match for semiconductor gadget packaging. Furthermore, AlN shows high chemical inertness and resistance to thaw metals, enhancing its viability for severe settings. These consolidated qualities establish AlN as a top candidate for high-power digital substrates and thermally handled systems.

Fabrication and Sintering Technologies

Making top quality light weight aluminum nitride porcelains calls for accurate powder synthesis and sintering methods to achieve thick microstructures with minimal contaminations. As a result of its covalent bonding nature, AlN does not quickly compress via standard pressureless sintering. Therefore, sintering aids such as yttrium oxide (Y ₂ O TWO), calcium oxide (CaO), or unusual planet aspects are commonly contributed to promote liquid-phase sintering and boost grain limit diffusion.

The construction procedure generally begins with the carbothermal decrease of aluminum oxide in a nitrogen ambience to synthesize AlN powders. These powders are then grated, shaped by means of techniques like tape casting or shot molding, and sintered at temperatures between 1700 ° C and 1900 ° C under a nitrogen-rich environment. Hot pressing or spark plasma sintering (SPS) can further improve thickness and thermal conductivity by minimizing porosity and promoting grain placement. Advanced additive manufacturing techniques are also being explored to produce complex-shaped AlN parts with tailored thermal monitoring capacities.

Application in Digital Packaging and Power Modules

One of one of the most prominent uses of aluminum nitride porcelains remains in electronic packaging, particularly for high-power devices such as insulated gateway bipolar transistors (IGBTs), laser diodes, and radio frequency (RF) amplifiers. As power densities raise in modern electronics, effective warmth dissipation ends up being important to ensure dependability and durability. AlN substrates provide an ideal option by integrating high thermal conductivity with exceptional electric seclusion, preventing short circuits and thermal runaway problems.

Additionally, AlN-based direct bound copper (DBC) and energetic metal brazed (AMB) substratums are increasingly utilized in power component layouts for electric vehicles, renewable energy inverters, and industrial electric motor drives. Compared to typical alumina or silicon nitride substratums, AlN uses much faster warm transfer and much better compatibility with silicon chip coefficients of thermal expansion, thus minimizing mechanical stress and anxiety and boosting general system efficiency. Ongoing study intends to boost the bonding strength and metallization methods on AlN surface areas to more increase its application extent.

Usage in Optoelectronic and High-Temperature Gadget

Beyond electronic packaging, light weight aluminum nitride porcelains play an essential function in optoelectronic and high-temperature applications because of their transparency to ultraviolet (UV) radiation and thermal security. AlN is extensively utilized as a substratum for deep UV light-emitting diodes (LEDs) and laser diodes, particularly in applications needing sanitation, picking up, and optical interaction. Its vast bandgap and reduced absorption coefficient in the UV array make it an ideal candidate for sustaining aluminum gallium nitride (AlGaN)-based heterostructures.

In addition, AlN’s ability to work dependably at temperatures going beyond 1000 ° C makes it appropriate for usage in sensing units, thermoelectric generators, and components exposed to extreme thermal lots. In aerospace and defense sectors, AlN-based sensor packages are utilized in jet engine tracking systems and high-temperature control devices where traditional products would certainly fall short. Continuous improvements in thin-film deposition and epitaxial growth strategies are expanding the potential of AlN in next-generation optoelectronic and high-temperature incorporated systems.

( Aluminum Nitride Ceramics)

Environmental Security and Long-Term Integrity

A vital factor to consider for any kind of substrate product is its long-term reliability under operational stress and anxieties. Light weight aluminum nitride demonstrates exceptional environmental stability compared to several other ceramics. It is highly resistant to deterioration from acids, antacid, and molten steels, making certain sturdiness in aggressive chemical environments. Nonetheless, AlN is susceptible to hydrolysis when subjected to moisture at elevated temperatures, which can weaken its surface and lower thermal performance.

To mitigate this problem, safety finishes such as silicon nitride (Si two N FOUR), aluminum oxide, or polymer-based encapsulation layers are commonly related to boost moisture resistance. In addition, cautious sealing and product packaging techniques are carried out during gadget assembly to maintain the integrity of AlN substrates throughout their service life. As environmental policies come to be extra stringent, the non-toxic nature of AlN additionally positions it as a favored option to beryllium oxide, which postures health threats during handling and disposal.

Conclusion

Aluminum nitride porcelains stand for a class of innovative products distinctly matched to attend to the growing needs for reliable thermal monitoring and electric insulation in high-performance electronic and optoelectronic systems. Their exceptional thermal conductivity, chemical stability, and compatibility with semiconductor technologies make them the most suitable substrate material for a variety of applications– from vehicle power modules to deep UV LEDs and high-temperature sensing units. As fabrication technologies continue to progress and affordable production approaches grow, the adoption of AlN substrates is expected to rise substantially, driving advancement in next-generation electronic and photonic tools.

Supplier

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials and products. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.(nanotrun@yahoo.com)
Tags: aluminum nitride ceramic, aln aluminium nitride, aln aluminum nitride ceramic

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

Alumina ceramics– renowned for their exceptional firmness, thermal resistance, and electric insulation homes– have actually become crucial products in today’s state-of-the-art globe. From semiconductor production to aerospace components, these advanced ceramics are relied on for their efficiency under severe problems. Over the past ten years, Alumina Techno has become a leading name in the manufacturing of alumina ceramic products, regularly delivering cutting-edge options that satisfy the advancing needs of international sectors.

(Alumina Ceramics)

Business History: A Trip Rooted in Ceramic Expertise

Developed in 2015, Alumina Techno began with a clear vision: to push the borders of what alumina ceramics can achieve with accuracy engineering and deep product scientific research knowledge. Starting from a small center with a tiny team of experts, the business swiftly obtained acknowledgment for its capability to produce complicated, high-grade alumina elements tailored for commercial and technical applications. For many years, Alumina Techno expanded its procedures, upgraded its equipment, and developed a solid reputation across vital markets such as electronics, auto, clinical tools, and renewable resource.

Flagship Item: High-Purity Alumina Ceramics

The core of Alumina Techno’s success depends on its high-purity alumina ceramic parts, including rods, tubes, plates, and custom-machined parts. These products are understood for their superb mechanical strength, wear resistance, and thermal stability, making them excellent for use in environments where typical products fail. Whether protecting high-voltage systems, supporting semiconductor wafer handling, or lining chemical processing equipment, Alumina Techno’s products have actually come to be identified with longevity and integrity.

Global Demand and Market Growth

Need for alumina porcelains continues to increase around the world, sustained by innovations in automation, clean energy innovations, and miniaturized electronic devices. As markets seek a lot more efficient and longer-lasting products, the market for alumina porcelains is predicted to grow continuously, reaching over USD 6 billion by 2030. Alumina Techno has placed itself well within this expanding landscape, supplying precision-engineered alumina porcelains to consumers in North America, Europe, Japan, and Southeast Asia. Its growing international visibility mirrors the trust fund and fulfillment of customers who depend on its products for mission-critical applications.

Process Optimization: Enhancing Quality Through Advanced Production

One of Alumina Techno’s specifying toughness is its constant renovation of manufacturing strategies. From raw powder blending to sintering and final machining, the company has improved each stage of the procedure to guarantee remarkable item consistency and efficiency. Investments in isostatic pressing, regulated environment sintering, and CNC machining centers have actually enabled Alumina Techno to decrease internal porosity, boost surface finish, and keep limited dimensional tolerances. These enhancements straight convert right into much better mechanical stamina and longer service life for end customers.

High Quality Enhancement: Focused on Real-World Efficiency

As opposed to concentrating on accreditations, Alumina Techno prioritizes real-world outcomes. The firm carries out comprehensive internal testing under substitute operating problems to fine-tune item features such as thermal shock resistance, dielectric toughness, and mechanical exhaustion. This hands-on strategy makes certain that every alumina ceramic element not just satisfies however often goes beyond client expectations. Feedback from long-lasting customers confirms better system efficiency and reduced downtime– key indications of the company’s dedication to quality.

Customization and Application-Specific Solutions

( Alumina Ceramics)

Understanding that modern-day markets require customized solutions, Alumina Techno supplies a wide range of customization alternatives. Whether it’s special forms, specialized surface therapies, or differing degrees of purity, the business works carefully with customers to develop products that integrate seamlessly right into their systems. This versatility has made it possible for partnerships with firms associated with cutting-edge tasks– from plasma generators to vacuum chambers and high-precision sensor real estates.

Sustainability and Long-Term Worth Production

Alumina Techno is dedicated to lasting methods and source performance. By optimizing production returns and decreasing product waste, the firm minimizes environmental impact while preserving cost-effectiveness. Additionally, the long life expectancy and reduced upkeep demands of alumina porcelains line up with global fads toward long lasting, eco-friendly products. As industries change towards greener technologies, Alumina Techno stands all set to sustain this change with trusted, high-performance ceramic services.

Looking Ahead: Structure on a Solid Foundation for Future Development

As Alumina Techno enters its 2nd years, the firm remains focused on technology and expansion. Strategies are underway to check out new ceramic compounds, establish automated assessment systems, and boost collaboration with study organizations. By staying in advance of industry patterns and continuing to refine its offerings, Alumina Techno intends to strengthen its position as a global leader in alumina ceramic innovation.

Conclusion: A Trusted Name in Alumina Ceramics

Over the past ten years, Alumina Techno has actually developed a strong brand name rooted in technical excellence and customer-centric technology. Its high-purity alumina ceramic items continue to be a best option for engineers and makers worldwide, supplying unrivaled performance across a wide spectrum of applications. With a background of consistent growth, procedure refinement, and a progressive attitude, Alumina Techno is well-prepared to lead the following wave of advancements in the sophisticated ceramics industry.

Vendor

Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality alumina a, please feel free to contact us. (nanotrun@yahoo.com)
Tags: Alumina Ceramics, alumina, aluminum oxide

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

As a brand-new generation of high-performance ceramic products, aluminum nitride porcelains (AlN) have shown a rapid development trend worldwide recently. According to data from reliable market research institutions, the worldwide light weight aluminum nitride ceramic market dimension will reach US$ 350 million in 2023 and is anticipated to surpass the US$ 700 million mark by 2030, with an ordinary yearly compound development rate of 8.5%-10%. This substantial development is mostly because of the promo of the global electronics industry upgrade and the new energy transformation, specifically in the areas of 5G interactions, power semiconductors, and new energy vehicles.

In terms of applications in the electronics sector, light weight aluminum nitride porcelains are gradually replacing standard alumina and silicon nitride ceramics with their superb thermal conductivity (theoretical thermal conductivity is as high as 320W/mK) and exceptional electric insulation buildings, becoming the recommended product for warm dissipation remedies for high-end digital tools. Today, applications in the electronic devices area have occupied 60% of the worldwide market share, among which high-power LEDs, incorporated circuit substratums, and superhigh frequency devices are the major application circumstances. As a sector technology leader, Advanced Porcelain’s high-purity light weight aluminum nitride products have actually been successfully applied to the items of several internationally distinguished semiconductor firms, with excellent market feedback.

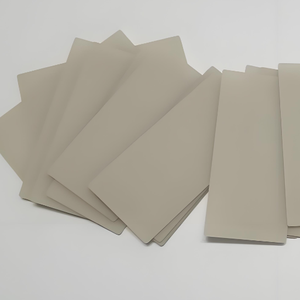

(Aluminum Nitride Ceramic Plate)

Regional pattern and affordable benefits

From the viewpoint of local circulation, the international aluminum nitride ceramic market shows evident local pile attributes. The Asia-Pacific area rates initially with a market share of 55%, amongst which the performance of the Chinese market is especially exceptional. The market size will reach US$ 120 million in 2023, and it is anticipated to keep a growth price of more than 11% in the next few years. The North American and European markets account for 25% and 15% of the marketplace share, respectively, and are generally used in premium electronic devices and automobile sectors.

In this affordable landscape, Advanced Porcelain has gradually established an international competitive advantage with its solid technological r & d strength and item innovation capacities. The business’s individually created high-thermal conductivity aluminum nitride substratum products have a thermal conductivity of greater than 280W/mK, which goes to the leading level in the market. At the very same time, the firm’s ingenious surface area metallization modern technology and ultra-thin substratum prep work process properly fulfill the development requirements of miniaturization of electronic devices. Currently, the firm’s items have actually been certified by many worldwide renowned firms and have actually established secure sales channels in the European and North American markets.

Technological advancement and tactical design

In regards to technical technology, Advanced Ceramic continues to increase its R&D investment, focusing on three major instructions: initially, devoted warm dissipation remedies for third-generation semiconductor materials; 2nd, the commercial application of low-temperature co-firing technology; and lastly, the optimization and updating of 3D printing molding processes. The facility of these innovative directions is based on a precise understanding of the industry’s technological growth fads and an in-depth understanding of client demands.

( Global Aluminum Denitrify (AlN) Ceramics Market Data Sheet)

The firm has presently looked for 23 relevant licenses and developed a complete intellectual property protection system. Specifically in the field of high-purity aluminum nitride powder preparation, the company has actually understood the core procedure innovation and supplied trustworthy assurances for product high quality. In order to fulfill the growing market need, the business is planning to develop a high-purity aluminum nitride powder assembly line with an annual outcome of 500 heaps, which is anticipated to raise manufacturing capacity after it is taken into manufacturing considerably.

Challenge response and growth plan

Despite the broad market prospects, the sector still encounters numerous challenges. Variables such as raw material cost changes, climbing power expenses, and more stringent environmental protection demands have brought stress on company operations. At the same time, the competition from alternate materials such as silicon carbide can not be disregarded. In feedback to these difficulties, Advanced Porcelain has actually created a systematic feedback method: reduce resources prices via supply chain optimization, promote smart manufacturing to improve manufacturing performance, and enhance modern technology research and development to maintain item competition.

In the following five years, the company prepares to enhance R&D financial investment to 8% of running earnings, focusing on innovations in crucial material innovations and producing processes. In terms of market growth, in addition to combining the existing benefits in the electronics area, it will concentrate on creating brand-new power lorries and power storage markets. It is predicted that by 2030, the need for light weight aluminum nitride ceramics in the electric lorry area will account for 30% of the overall need, which will certainly end up being a brand-new growth point for the company’s performance.

( Aluminum Nitride Ceramic Tube)

Future Overview

Looking in advance, with the rapid development of the worldwide electronic economic situation and the accelerated makeover of the energy structure, the aluminum nitride ceramic market will certainly introduce a more comprehensive advancement area. Especially in the context of the rapid surge of the third-generation semiconductor market, the demand for high-performance warmth dissipation products will certainly continue to expand. Advanced Porcelain will continue to take advantage of its technical management, strengthen strategic participation with all celebrations in the industrial chain, and provide consumers with far better product or services.

The business will certainly remain to focus on the advancement fads of market technology, adjust the direction of item research and development in a timely fashion, and ensure that it keeps a leading setting in market competitors. At the very same time, it will even more enhance its global design, increase its worldwide market share, and aim to accomplish the critical goal of increasing its global market share in the following 3 years. With continuous advancement and lean operations, Advanced Porcelain is certain that it can develop greater worth in the rapidly developing light weight aluminum nitride ceramic market.

Distributor

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials and products. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.(nanotrun@yahoo.com)

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]
